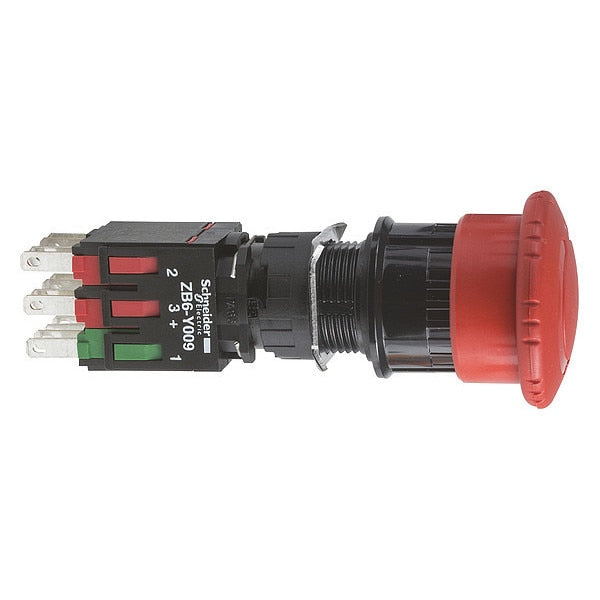

Pushbutton 250Vac 15Amp Xb6 +Options

SKU
Brand Schneider Electric
Categories
Description Pushbutton 250Vac 15Amp Xb6 +Options, Terminal Connection Pressure Plate

Web Price

$89.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Connections - Terminals Faston connectors 2.8 x 0.5 mm

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 2 NC

Contacts Usage standard

Country of Origin (subject to change) Mexico

Depth 77 mm

Device Short Name XB6

Electrical Durability 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Height 30 mm

Ip Degree Of Protection IP65 IEC 60529

Mechanical Durability 100000 cycles

Mounting Diameter 16 mm

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94

Operating Force 3.5 N NO changing electrical state || 4.5 N NC changing electrical state

Operating Position any position

Operating Travel 1 mm NC changing electrical state) || 2 mm NO changing electrical state) || 3.5 mm total travel)

Operator Profile red mushroom ÃÂ 30 mm, unmarked

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications CSA || CCC || GOST || UL

Product Or Component Type complete emergency stop push-button

Protective Treatment TC

Reset turn to release

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG

Standards UL 508 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60204-1 || EN/ISO 13850 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1

Terminal Connection Pressure Plate

Terminals Description Iso NÃÂ°1 (31-32)NC || (13-14)NO || (21-22)NC

Type Of Keylock Ronis 200

Type Of Operator trigger action and mechanical latching

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
