Home / Pushbutton Head, 22 mm, Red

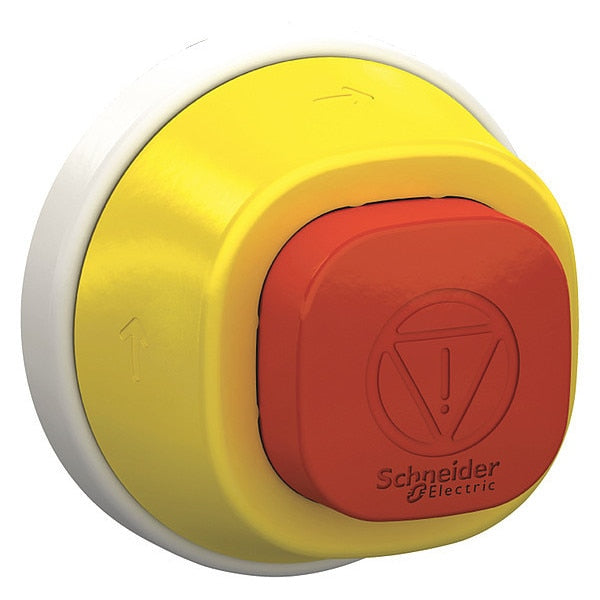

Pushbutton Head, 22 mm, Red

SKU
Brand Schneider Electric
Categories
Description Pushbutton Head, 22 mm, Maintained Push / Turn To Release, Type of Operator Square Push Button, Basic Material Plastic, Bezel Material Plastic, Color Red, IP Rating 66, 67, 69, 69K, Legend No Legend, Legend/Background Color No Legend, Standards EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, UL 60947-5-1, UL 60947-5-6, Features Green Premium product, Mercury free, Pro-active compliance, Toxic heavy metal free
graingerSKU: , mscSKU: , zoro_no: G3459313, mongo_id: 65bbe65b3aaddbd5a9023f5c

Web Price

$96.99 / each

Qty

Product Details

Action Maintained Push / Turn To Release

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Material Plastic

Cad Overall Depth 40 mm

Cad Overall Height 60 mm

Cad Overall Width 60 mm

Color Red

Compatibility Code ZB5

Country of Origin (subject to change) Czechia

Device Presentation basic element

Device Short Name ZB5

Electrical Composition Code C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting

Electrical Insulation Class class II IEC 61140

Features Green Premium product, Mercury free, Pro-active compliance, Toxic heavy metal free

Head Type standard

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

IP Rating 66, 67, 69, 69K

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Operator Profile red square 32 mm

Package Quantity 1

Product Certifications UL Listed || CSA || EAC || CCC

Product Destination emergency stop push-button

Product Or Component Type head for emergency stop push-button

Protective Treatment TH

Reset turn to release

Resistance To Electrostatic Discharge 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Size 22 mm

Standards EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, UL 60947-5-1, UL 60947-5-6

Station Name XALKW01

Type of Operator Square Push Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
