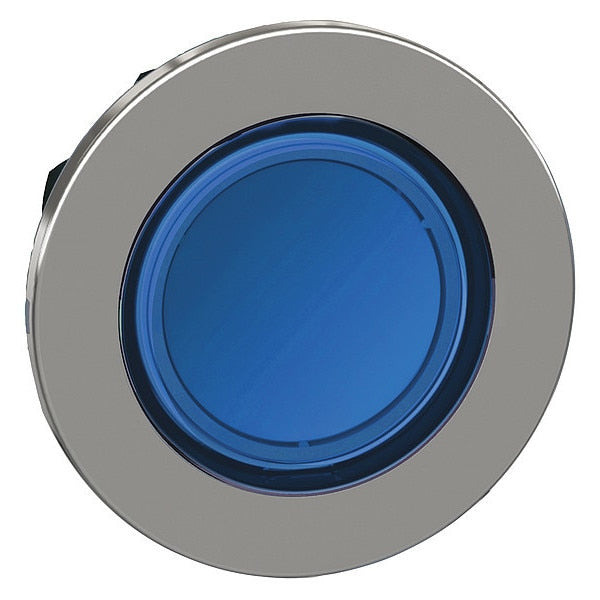

Pushbutton Head, 30 mm, Blue

SKU
Brand Schneider Electric
Categories
Description Pushbutton Head, Color Blue, For Use With Body Sub-assembly ZB4BZ Series, Size 30 mm, Basic Material Metal, Illuminated, Connection Type Screw on, IP Rating 66, 67, 69, 69K, Legend No Legend, Legend/Background Color No Legend, Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Web Price

$15.69 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material chromium plated metal

Cad Overall Depth 31 mm

Cad Overall Height 36.6 mm

Cad Overall Width 36.6 mm

Color Blue

Connection Type Screw on

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4F

Electrical Composition Code M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting

For Use With Body Sub-assembly ZB4BZ Series

Head Type built-in-flush

Ik Degree Of Protection IK06 IEC 50102

Illuminated / Non-Illuminated Illuminated

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

IP Rating 66, 67, 69, 69K

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 10000000 cycles

Mounting Diameter 30.5 mm

Operator Additional Information for insertion of legend

Operator Profile blue flush

Overvoltage Category class I IEC 60536

Package Quantity 1

Product Certifications UL Listed || CSA || CCC || EAC

Product Or Component Type head for illuminated push-button

Protective Treatment TH

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Size 30 mm

Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Type Of Operator spring return

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
