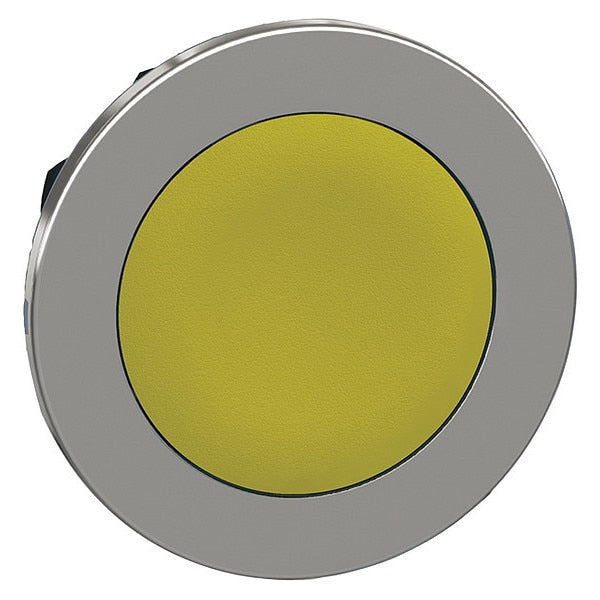

Pushbutton Head, 30 mm, Yellow

SKU
Brand Schneider Electric
Categories
Description Pushbutton Head, 30 mm, Maintained Push, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Chromium Plated Metal, Color Yellow, IP Rating 66, 67, 69, 69K, Legend No Legend, Legend/Background Color No Legend, Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-2, JIS C8201-5-1, UL 508, Features Green Premium product, Mercury free, Pro-active compliance, Toxic heavy metal free

Web Price

$17.44 / each

Qty

Product Details

Action Maintained Push

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material Chromium Plated Metal

Cad Overall Depth 31 mm

Cad Overall Height 36.6 mm

Cad Overall Width 36.6 mm

Color Yellow

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4F

Electrical Composition Code M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED

Electrical Shock Protection Class class I IEC 60536

Features Green Premium product, Mercury free, Pro-active compliance, Toxic heavy metal free

Head Material Metal

Head Type built-in-flush

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

IP Rating 66, 67, 69, 69K

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 500000 cycles

Mounting Diameter 30.5 mm

Operator Profile orange flush, unmarked

Overvoltage Category class I IEC 60536

Package Quantity 1

Product Certifications UL Listed || CSA || CCC || EAC

Product Or Component Type head for non-illuminated push-button

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Size 30 mm

Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-2, JIS C8201-5-1, UL 508

Type of Operator Flush Button

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
