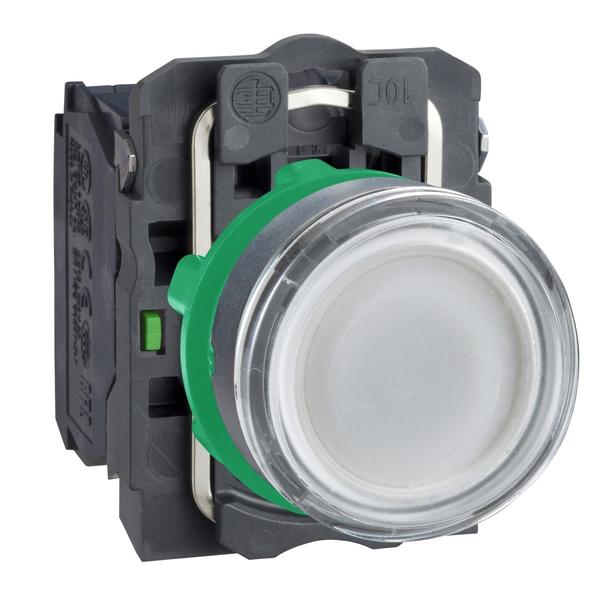

Pushbutton Led 24V 22MM Xb5B +Options

SKU
Brand Schneider Electric
Categories
Description Pushbutton Led 24V 22MM Xb5B Options
graingerSKU: , mscSKU: 69671733, zoro_no: G7655839, mongo_id: 65bbe83b9a749db82277ea52

Web Price

$132.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Bulb Base integral LED

Cap/Operator Or Lens Colour white

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Current Consumption 18 mA

Depth 57 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Electromagnetic Emission class B IEC 55011

Fixing Collar Material plastic

Head Type standard

Height 42 mm

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP69 || IP69K || IP67

Light Source universal LED

Mechanical Durability 10000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operating Force 3.5 N NC changing electrical state || 3.8 N

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Additional Information with plain lens

Operator Profile white flush, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications GL || DNV || CSA || BV || UL Listed || LROS (Lloyds register of shipping)

Product Or Component Type illuminated push-button

Protective Treatment TH

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Service Life 100000 h at rated voltage and 25ÃÂ°C

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Standards EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1

Supply Voltage Limits 19.2-30 V DC || 21.6-26.4 V AC

Surge Withstand 1 kV IEC 61000-4-5

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type Of Operator spring return

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 24 V AC/DC 50/60 Hz
