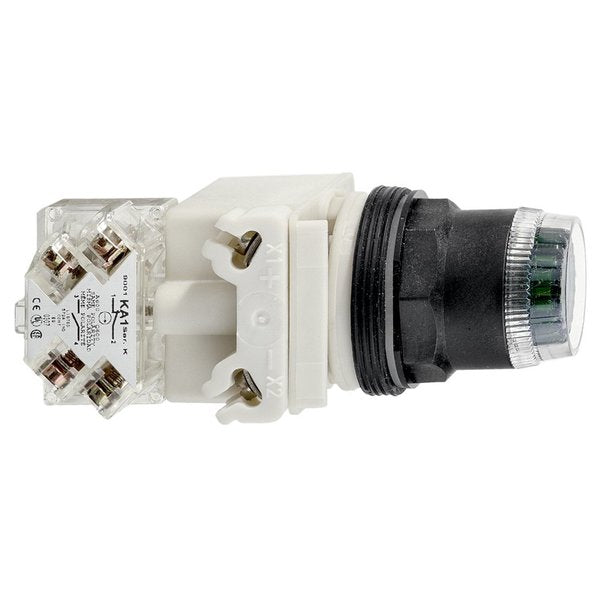

PUSHBUTTON OPERATOR 30MM SK OPTIONS

SKU
Brand Schneider Electric
Categories
Description PUSHBUTTON OPERATOR 30MM SK +OPTIONS
graingerSKU: , mscSKU: , zoro_no: G3300434, mongo_id: 65bbe63d3aaddbd5a9018159

Web Price

$198.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Bulb Base BA 9s

Cap/Operator Or Lens Colour red

Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contacts Type And Composition without contact block

Country of Origin (subject to change) Mexico

Device Presentation basic element

Device Short Name 9001SK

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP66 IEC 60529

Light Block Supply direct 120 V AC/DC

Light Source Red LED

Light Source Colour red

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Operating Position any position

Operator Additional Information plastic guard

Operator Profile flush, red flush, unmarked

Package Quantity 1

Positive Opening without

Product Certifications UL 508 || NEMA

Product Or Component Type head for illuminated push-button

Protective Treatment TC

Rated Breaking Capacity 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Standards EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C 4520 || JIS C 852 || CSA C22.2 No 14

Tightening Torque 0.8-0.8 N.m EN/IEC 60947-1

Type Of Operator spring return

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 120 V, 120 V AC/DC
