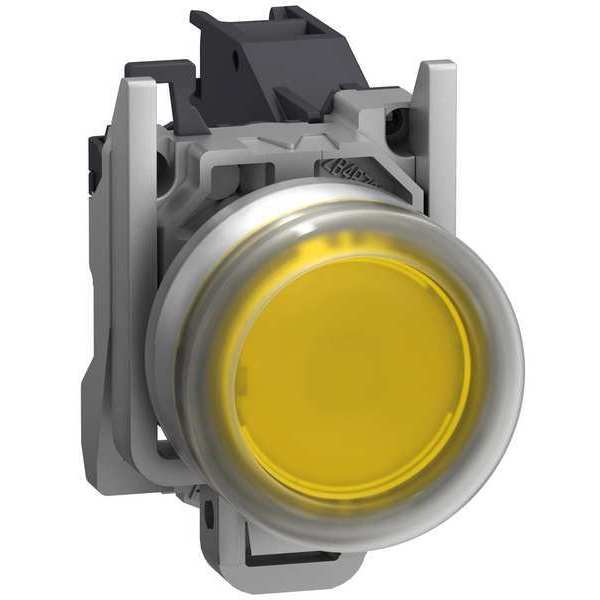

PushButton with Boot, 22 mm, 1 NO, Yellow

SKU
Brand Schneider Electric
Categories
Description PushButton with Boot, 22 mm, Maintained Action, Extended Push Button Type of Operator, Head Material Metal, Contact Form 1 NO, Bezel Metal, Color Yellow, Contact Rating 10 A @ 415V AC, NEMA Contact Rating Designation A600/Q300, Number of Operators 1, IP Rating 65, Standards ANSI/ISA, CSA, EN/IEC, UL, Terminal Connection Screw Clamp

Web Price

$209.99 / each

Qty

Product Details

Action Maintained

Ambient Air Temperature For Operation -20-75ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Metal

Bezel Material chromium plated metal

Color Yellow

Connections - Terminals screw clamp terminals, 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1 NO

Contact Operation slow-break

Contact Rating 10 A @ 415V AC

Contacts Type And Composition 1 NO

Country of Origin (subject to change) France

Depth 72 mm

Device Mounting fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1

Device Short Name XB4

Dust Zone zone 21 - 22

Embedding Depth 58 mm

Fixing Center >= 30 x 40 mm support panel) 1-6 mm

Fixing Collar Material zamak

Gas Zone zone 1 - 2

Head Material Metal

Height 30 mm

Ip Degree Of Protection IP66 IEC 60529

IP Rating 65

Marking Ex db eb IIC Gb || II 2 GD || Ex tb IIIC Db

Mechanical Durability 5000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q300

Number of Operators 1

Operating Force 3.962 N

Operating Travel 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)

Operator Additional Information booted (clear silicon)

Operator Profile yellow projecting

Package Quantity 1

Positive Opening without

Product Certifications INERIS 04ATEX9004U

Product Or Component Type complete push-button

Protective Treatment TH

Safety Rating Zone 2

Shape Of Signaling Unit Head round

Size 22 mm

Standards ANSI/ISA, CSA, EN/IEC, UL

Terminal Connection Screw Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Extended Push Button

Width 46.2 mm

[Ie] Rated Operational Current 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 415 V
