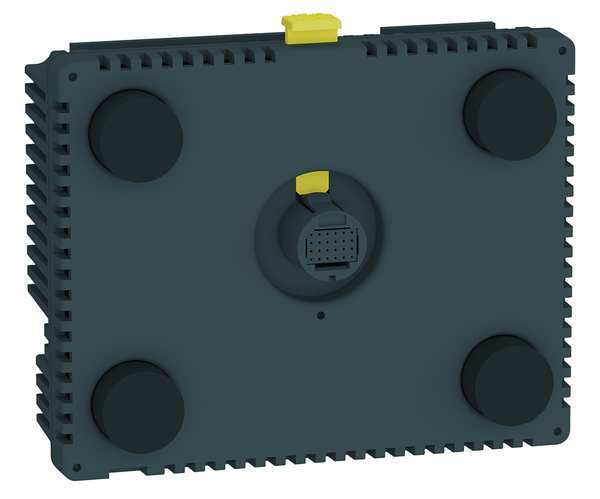

Rear Module, Controller, 24VDC

Rear Module, Controller, 24VDC

  • Schneider Electric
  • Rear Module, Voltage 24V DC, Port Type USB 2.0, USB-Mini B, Width 10.4 in, Height 5.6 in, Depth 11.8 in, For Use With HMIS85, Mfr. No. HMIS65

    graingerSKU: 20XG47, mscSKU: , zoro_no: G2009852, mongo_id: 65bbe7b13aaddbd5a90ae2b1

Web Price
$1,544.99 / each
Qty

Product Details

+/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode) || +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
0-50°C
-20-60°C
2 analog input || 2 RTDs
0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %) || -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
RTD - 200...600°C 16 bitsPt 100/Pt 1000 || RTD - 50...200°C 16 bitsNi 100/Ni 1000 || RTD - 200...760°C 16 bits thermocouple J) || RTD - 240...1370°C 16 bits thermocouple K) || RTD 0...1600°C 16 bits thermocouple R) || RTD 200...1800°C 16 bits thermocouple B) || RTD 0...1600°C 16 bits thermocouple S) || RTD - 200...400°C 16 bits thermocouple T) || RTD - 200...900°C 16 bits thermocouple E) || RTD - 200...1300°C 16 bits thermocouple N)
2 resistive load 12 bits + sign
0...20 mA/4...20 mA > 300 Ohm)open-circuit || -10...10 V/0...10 V > 2 kOhm)short-circuit
0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)
3.5 mm
China
11.8 in
basic element
7.83 mA fast input || 5 mA digital
2 fast input (normal mode) IEC 61131-2 Type 1 || 6 digital input IEC 61131-2 Type 1
24 V DC sink or source (positive/negative)
2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)
2 fast output (normal mode) source || 6 digital output source
24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay
Modbus || CANopen || Modbus TCP/IP
electrostatic discharge immunity test 8 kV air discharge) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV contact discharge) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz...3 GHz) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV power lines) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV between analogue I/O and operating voltage) IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV Ethernet line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV COM line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV CAN line) IEC 61000-4-4 || surge immunity test 2 kV power supply (common mode)) IEC 61000-4-5 || surge immunity test 1 kV power supply (differential mode)) IEC 61000-4-5 || surge immunity test 1 kV common mode digital I/O) IEC 61000-4-5 || surge immunity test 0.5 kV differential mode digital I/O) IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) IEC 61000-4-6 || conducted emission 150 kHz...30 MHz EN 55011 || radiated emission 30 MHz...1 GHz EN 55011
PC/PBT
corrosive gas free
by 1 nut Ø 22 mm 1...6 mm thick panel
HMIS85, Mfr. No. HMIS65
5.6 in
10 ms
2.81 kOhm || 4.7 kOhm
2 fast input FI0...FI1 || 2 fast output FQ0...FQ1 || 6 digital input DI0...DI5 || 6 digital output DQ0...DQ5
30 A
> 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth
1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
500 V DC
no indicator
CE
shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input
100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction
100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)
800...1114 hPa
flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB
NEMA 4X front panel
1 fast input (HSC mode) || 1 digital input
limited by internal memory capacity
<= 6561.68 ft (2000 m)
Harmony
with
1
2 IEC 60664
USB 2.0, USB-Mini B
15 W
333 MHz
CPU RISC
cULus 508 || cUL 1604 Class 1 Division 2 || C-tick || cULus CSA 22-2 No 142 || GOST || KCC || UKCA || UKEX
controller
24 V 20.4 to 28.8 V)DC
built-in
5-85 % without condensation
15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
SoMachine
UL 508 || FCC Class A || EN 61131-2 || CSA C22.2 No 213 Class I Division 2 || ANSI/ISA 12-12-01 || IEC 61000-6-2
0-10000 m
external source
Upgradeable through digital modules and upgraded components
+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
24V DC
10.4 in
24 V 20.4-28.8 V)DC
