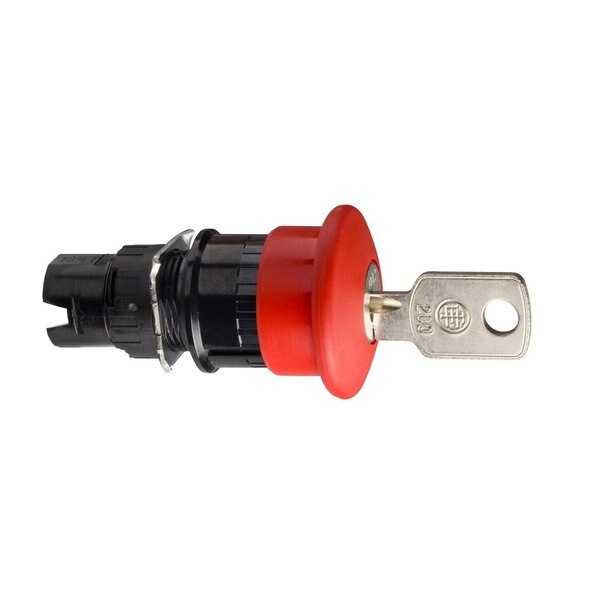

Red 030 Emergency stop pushbutton head 0

SKU
Brand Schneider Electric
Categories
Description Red 030 Emergency stop pushbutton head 0

Web Price

$84.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Cad Overall Depth 70 mm

Cad Overall Height 30 mm

Cad Overall Width 30 mm

Country of Origin (subject to change) Mexico

Device Short Name ZB6

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP65 IEC 60529

Mechanical Durability 100000 cycles

Mounting Diameter 16 mm

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Operator Profile red mushroom ÃÂ 30 mm, unmarked

Package Quantity 1

Product Certifications UL || CSA || GOST || CCC

Product Or Component Type head for emergency stop push-button

Protective Treatment TC

Reset key release

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards JIS C8201-5-1 || UL 508 || EN/ISO 13850 || JIS C 852 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || JIS C8201-1

Type Of Keylock key 200

Type Of Operator trigger action and mechanical latching

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
