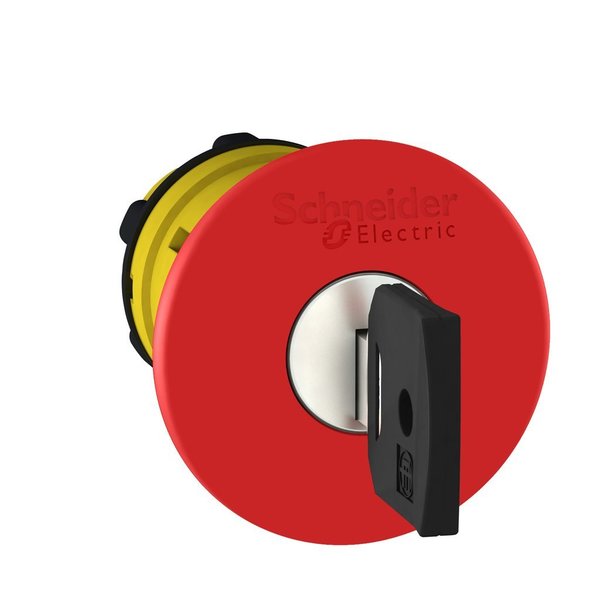

Red 040 Emergency stop, switching off he

SKU
Brand Schneider Electric
Categories
Description Red 040 Emergency stop,switching off he

Web Price

$194.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Cad Overall Depth 79 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Compatibility Code ZB5

Country of Origin (subject to change) United States

Device Presentation basic element

Device Short Name ZB5

Electrical Composition Code C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting

Head Type standard

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

Key Withdrawal Position center

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operator Profile red mushroom ÃÂ 40 mm, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Certifications UL Listed || CSA || BV || GL || DNV || LROS (Lloyds register of shipping)

Product Destination emergency stop push-button

Product Or Component Type head for emergency stop push-button

Protective Treatment TH

Reset key release

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || GB 14048.5 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || IEC 60364-5-53 || EN/ISO 13850 || JIS C8201-1

Station Name XALD 1 cut-out || XALK 1 cut-out

Type Of Keylock Dom 4A185

Type Of Operator trigger action and mechanical latching

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
