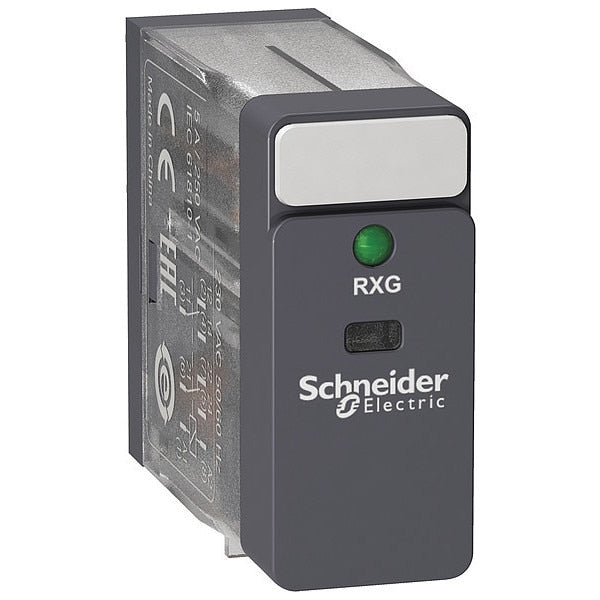

Home / Relay, 2CO, 5A-250VAC, 120VAC, Coil Led
Relay, 2CO, 5A-250VAC, 120VAC, Coil Led

Relay, 2CO, 5A-250VAC, 120VAC, Coil Led

  • Schneider Electric
  • Plug-In Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 5 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 30V, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.36 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 6,300 ohm, Contact Material Silver Alloy

    graingerSKU: 69ZP04, mscSKU: , zoro_no: G1978865, mongo_id: 65bbea2822d7a989a999a98d

Web Price
$14.74 / each
Qty
Minimum order: 10

Product Details

10 A @ 250 V
-40 to 158°F (-40 to 70°C)
-40 to 185°F (-40 to 85°C)
0.82 VA 60 Hz
Square
Square
1.36 in
1.14 in
1.14 in
1.4 in
0.51 in
0.51 in
6,300 ohm
120V AC
AC
120V AC
DPDT
DPDT
Silver Alloy
5 A @ 250V
5 A @ 30V
100 mOhm
2 C/O
Silver alloy (AgSnO2In2O3)
120 V AC 50/60 Hz
0.8 to 1.1 Uc AC
5 A -40 to 131°F (-40 to 55°C)
China
Standard
5 A
10 A @ 30 V
Complete product
1,000V AC Between Contacts with Micro Disconnection, 3,000V AC Between Poles with Basic Insulation, 5,000V AC Between Coil and Contact with Reinforced Insulation
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
Greater than or Equal to 0.3 Uc AC
Quick-Connect
Tab
100000 cycles NO resistive at 55°C; 100000 cycles NC resistive at 55°C
Class F
100,000
Enclosed
Insulation Class F; flag Local Signalling; With Status Led
0.09 in
Hard-Wired Logic Automated Systems
50/60 Hz
1.1V AC
1,000 megaohm
IP40
General Purpose Relay
5 A 250 V AC
Flag
158 Degrees F
1250 VA
250V AC, 30V DC
10000000 cycles
10,000,000
-40 Degrees F
50 mW at 10 mA, 5 V DC
10 mA
Plug In
Plug-In
any position
8
8
Less than or Equal to 1800 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
-40-70°C
20 ms
1.59 in
III
1
Flat
2
0.82 VA
0.82VA
CE; CSA; UL; EAC; DNV-GL
RT I
No
No Test Button
No Button
250 V IEC; 300 V CSA; 300 V UL
5 A 30 V DC) UL; 5 A 30 V DC) IEC; 5 A 250 V AC) IEC; 5 A 250 V AC) UL
10 to 85%
Socket
20 ms
Shock-Resistant, Vibration-Resistant
20 msec
Enclosed
Harmony(TM) RXG Series
Interface relay
20 gn in operation; 100 gn not in operation
K
Socket / Square / 8 / 0.09 in
CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed
Mechanical Flag
With
250 V AC || 30 V DC
Level A group mounting
7.08 lbf.in (0.8 N.m)
0.2
3 gn +/- 0.75 mm 10 to 150 Hz)in operation; 5 gn +/- 0.75 mm 10 to 150 Hz)not in operation
0.64 oz
