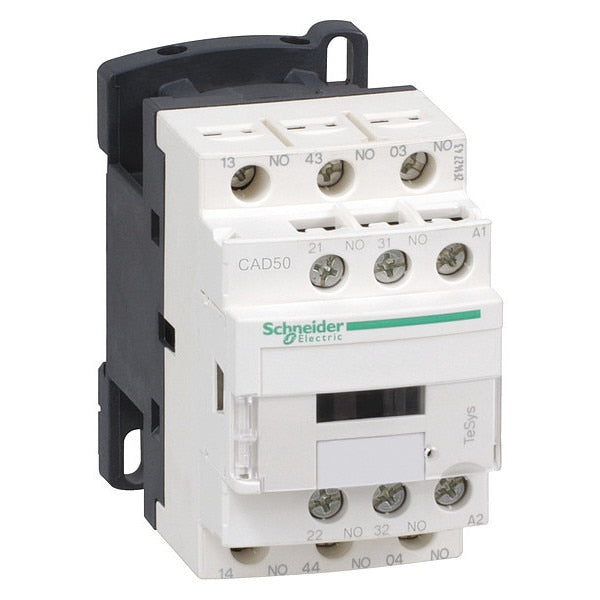

Relay 600V 10Amp Tesys + Options

SKU
Brand Schneider Electric
Categories
Description Relay 600V 10Amp Tesys + Options
graingerSKU: null, mscSKU: null, zoro_no: G0847939, mongo_id: 65bbe5ee3aaddbd5a9ff6779

Web Price

$206.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-60ÃÂ°C || 60-70ÃÂ°C with derating

Ambient Air Temperature For Storage -60-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947-5-1

Coil Volts 600V

Connections - Terminals screw clamp terminals 1 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 2 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 1-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 1-2.5 mmÃÂ²flexible with cable end || screw clamp terminals 1 1-4 mmÃÂ²solid without cable end || screw clamp terminals 2 1-4 mmÃÂ²solid without cable end

Contactor Application control circuit

Control Circuit Type DC low consumption

Control Circuit Voltage Limits 0.1...0.25 Uc -40-70ÃÂ°C drop-out DC || 0.7...1.25 Uc -40-60ÃÂ°C operational DC || 1...1.25 Uc 60-70ÃÂ°C operational DC

Country of Origin (subject to change) Multiple

Depth 93 mm

Device Short Name CAD

Height 77 mm

Hold-In Power Consumption In W 2.4-2.4 W 20ÃÂ°C

Inrush Power In W 2.4-2.4 W 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X VDE 0106

Irms Rated Making Capacity 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Maximum Operating Rate 180 cyc/mn

Mechanical Durability 30 Mcycles

Mechanical Robustness shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Support rail || plate

Non-Overlap Time 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Operating Altitude 0...9842.52 ft (0...3000 m)

Operating Time 65...88 ms coil energisation and NO closing || 14...25 ms coil de-energisation and NO opening

Package Quantity 1

Pole Contact Composition 5 NO

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAD

Product Or Component Type control relay

Protective Treatment TH IEC 60068

Range TeSys || TeSys Deca

Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Tightening Torque 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat ÃÂ 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2

Time Constant 40 ms

Utilisation Category AC-15 || AC-14 || DC-13

Width 45 mm

[Icw] Rated Short-Time Withstand Current 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

[Ith] Conventional Free Air Thermal Current 10 A 60ÃÂ°C

[Uc] Control Circuit Voltage 24 V DC

[Ue] Rated Operational Voltage <= 690 V AC 25...400 Hz

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947

[Ui] Rated Insulation Voltage 600 V UL || 600 V CSA || 690 V IEC 60947-5-1
