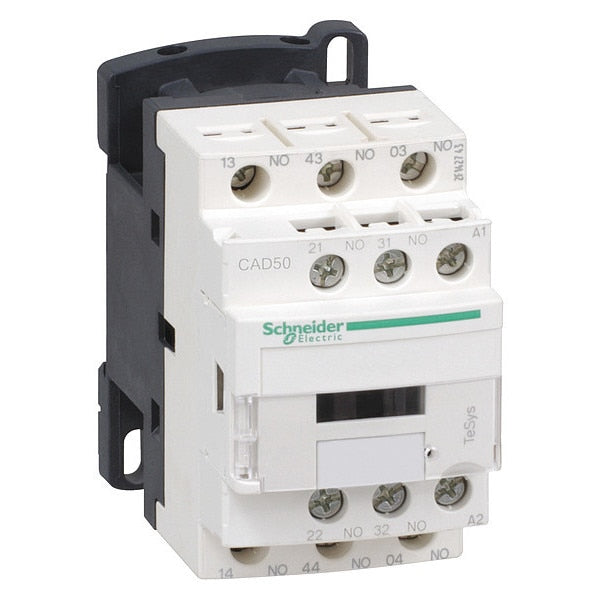

Relay 600V 10Amp Tesys + Options

SKU
Brand Schneider Electric
Categories
Description Relay 600V 10Amp Tesys + Options
graingerSKU: 48N472, mscSKU: , zoro_no: G0570145, mongo_id: 65bbe7943aaddbd5a90a2703

Web Price

$120.56 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-60ÃÂ°C || 60-70ÃÂ°C with derating

Ambient Air Temperature For Storage -60-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947-5-1

Connections - Terminals screw clamp terminals 1 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 2 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 1-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 1-2.5 mmÃÂ²flexible with cable end || screw clamp terminals 1 1-4 mmÃÂ²solid without cable end || screw clamp terminals 2 1-4 mmÃÂ²solid without cable end

Contactor Application control circuit

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage Limits 0.3 to 0.6 Uc -40-70ÃÂ°C drop-out AC 50/60 Hz || 0.8 to 1.1 Uc -40-60ÃÂ°C operational AC 50 Hz || 0.85 to 1.1 Uc -40-60ÃÂ°C operational AC 60 Hz || 1 to 1.1 Uc 60-70ÃÂ°C operational AC 50/60 Hz

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C))

Country of Origin (subject to change) Indonesia

Depth 84 mm

Device Short Name CAD

Height 77 mm

Hold-In Power Consumption In Va 8-8 VA 50 Hz 20ÃÂ°C)

Inrush Power In Va 70-70 VA 50 Hz 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X front face VDE 0106

Irms Rated Making Capacity 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Maximum Operating Rate 180 cyc/mn

Mechanical Durability 30 Mcycles

Mechanical Robustness shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5 to 300 Hz IEC 60068-2-6

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Support rail || plate

Non-Overlap Time 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Time 12 to 22 ms coil energisation and NO closing || 4 to 12 ms coil de-energisation and NO opening

Package Quantity 1

Pole Contact Composition 5 NO

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAD

Product Or Component Type control relay

Protective Treatment TH IEC 60068

Range TeSys || TeSys Deca

Rated Insulation Voltage 600 V UL; 600 V CSA; 690 V IEC 60947-5-1

Rated Operational Voltage Less than or Equal to 690 V AC 25 to 400 Hz

Rated Short Time Withstand Current 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms

Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Tightening Torque 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat ÃÂ 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2

Utilisation Category DC-13 || AC-15 || AC-14

Width 45 mm

[Icw] Rated Short-Time Withstand Current 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

[Ith] Conventional Free Air Thermal Current 10 A 60ÃÂ°C

[Uc] Control Circuit Voltage 110 V AC 50/60 Hz

[Ue] Rated Operational Voltage <= 690 V AC 25 to 400 Hz

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947

[Ui] Rated Insulation Voltage 600 V UL || 600 V CSA || 690 V IEC 60947-5-1
