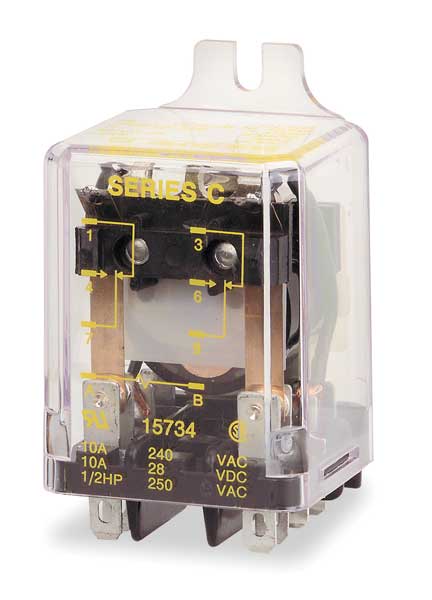

Relay, 8Pin, DPDT, 10A, 100VAC

SKU
Brand Schneider Electric
Categories
Description Flange Mount Relay, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Push-On Terminal, Number of Pins 8, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 1.5 A @ 240V, 10 A @ 277V, 3 A @ 120V, Contact Rating (DC) 10 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Side Flange, Push-To-Test Method Manual, Base Shape Square, Body Depth 1.4 in, Body Height 2.75 in, Body Width 1.4 in
graingerSKU: 2DR88, mscSKU: , zoro_no: G2129531, mongo_id: 65bbe78f9a749db822742ce2

Web Price

$37.74 / each

Qty

Product Details

AC Contact Rating - Relay 12A @ 240V

Ambient Air Temperature For Operation -40-131ÃÂ°F

Base Shape Square

Body Depth 1.4 in

Body Depth - Relay 1.4 in

Body Height 2.75 in

Body Height - Relay 1.9 in

Body Width 1.4 in

Body Width - Relay 1.4 in

Coil Voltage 120V AC

Coil Voltage Type AC

Coil Volts 120V AC

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Alloy

Contact Rating 12A @ 240VAC/28VDC

Contact Rating (AC) 1.5 A @ 240V, 10 A @ 277V, 3 A @ 120V

Contact Rating (DC) 10 A @ 30V

Contacts Material silver alloy (AgNi)

Control Type without test button

Country of Origin (subject to change) China

Current Rating 10 A

DC Contact Rating - Relay 12A @ 28V

Depth 1.4 in

Electrical Connection Push-On Terminal

Electrical Connection Type Push-In

Environmental Protection Enclosed

Features Standard Relay, Spade Terminals

Height 2.75 in

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/3 hp

HP @ 240V 1/2 hp

Item - Relay Flange Mount Relay

Local Signalling no indicator

Maximum Operating Temperature 131 Degrees F

Maximum Switching Capacity 2.5 VA

Maximum Switching Voltage 300V AC/DC, 30V AC/DC

Minimum Operating Temperature -40 Degrees F

Motor Rated Yes

Mounting Side

Mounting - Relay Side Flange

Mounting Style Side Flange

Mounting Support flange

Number of Pins 8

Number of Pins - Relay 8

Operating Current 1.5 A at 240V AC (Inductive Load), 10 A at 277V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 3 A at 120V AC (Inductive Load)

Operating Time 20 ms - pick-up || 20 ms - drop-out

Overall Depth 2.75 in

Overall Height - Relay 2.75 in

Package Quantity 1

Pins 8

Power Consumption 2.5 VA

Power Consumption - Relay 2.5 VA

Product Certifications UL Recognized || CSA || CE

Product Or Component Type relay

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508

Rated Power In Hp 1 hp 277 V AC || 0.33 hp 120 V AC

Relay Mounting Style Surface (Side Flange)

Relay Type general purpose

Response Time 20 msec

Sealing Enclosed

Series Square D Universal Series

Shape Of Pin spade

Socket Code Configurator Surface (Side Flange) / Square / 8

Standards CE Certified, CSA Certified, UL Listed

Status Indicator None

Switch Function DPDT

Weight 3.04 oz
