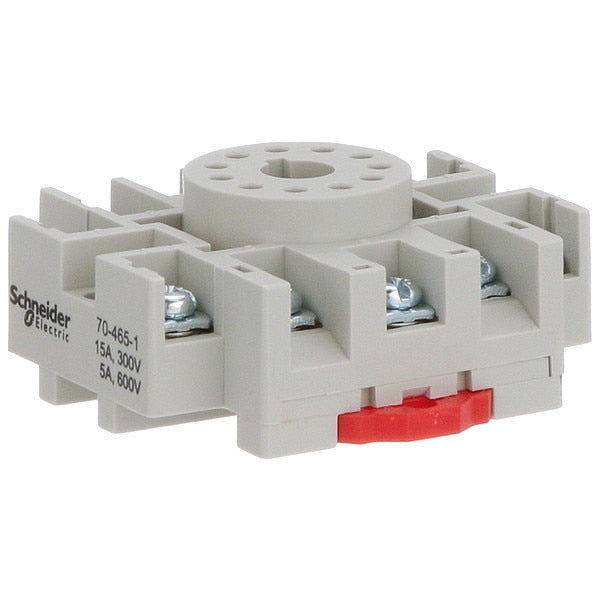

Home / Relay Scket, Standrd, Octal, 11 Pin, 2.32" L
Relay Scket, Standrd, Octal, 11 Pin, 2.32

Relay Scket, Standrd, Octal, 11 Pin, 2.32" L

  • Schneider Electric
  • Relay Socket, Base Style Octal, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 11, Number of Terminals 11, Pin Shape Round, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 750H Haz Location Series, Contact Rating (AC) 15 A @ 300V, 5 A @ 600V, Depth 2.24 in, Height 0.97 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F

    graingerSKU: , mscSKU: , zoro_no: G1367527, mongo_id: 65bbe7203aaddbd5a90776f4

Web Price
$6.94 / each
Qty

Product Details

-40 to 131°F (-40 to 55°C)
-40 to 221°F (-40 to 105°C)
Octal
Octal
White
750H Haz Location Series
screw clamp terminals solid for output; screw clamp terminals stranded for output
3 NO + 3 NC
3PDT
3PDT
15A @ 300VAC, 5A @ 600VAC
15 A @ 300V, 5 A @ 600V
15A @ 300V AC, 5A @ 600V AC
Mixed
China
15 A
2.24 in
2.32 in
Screw Clamp
Screw Clamp
Screw
Yes
By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail
UL94-V0
Not Applicable
0.97 in
0.97 in
IP20
Relay Socket
2.32
131 Degrees F
-40 Degrees F
Din Rail
DIN Rail
DIN Rail
11
11
11
1
Round
UL; CSA; CE
relay 750XCXR; relay 750XCXH
Legacy
Socket
5 A; 15 A
Combination roundhead
B
Octal / 11
Standard
DIN-Rail
Octal
Standard, Finger Safe
Standard
CE Certified, CSA Certified, UL Listed
None
Screw Clamp
Screw < 1 N.m; Screw < 0.8 N.m
300/600VAC
2.01 oz
2.32 in
2.16 in
300...600 V
