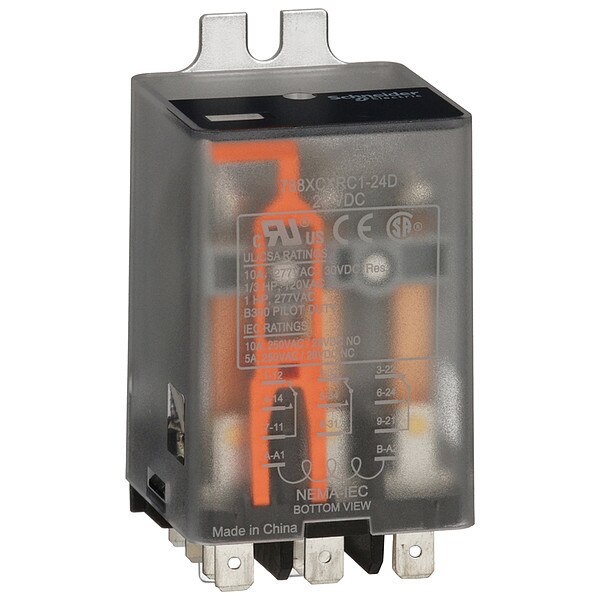

Relay, Side Flange, 1.4VA, 3PDT, 24VDC

SKU
Brand Schneider Electric
Categories
Description Flange Mount Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Mounting Style Side Flange, Body Depth 1.9 in, Body Height 1.4 in, Body Width 1.38 in, Coil Resistance 470 ohm
graingerSKU: 35KR74, mscSKU: , zoro_no: G9784232, mongo_id: 65bbe8d122d7a989a9919626

Web Price

$23.06 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 277V

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Square

Body Depth 1.9 in

Body Depth - Relay 1.4 in

Body Height 1.4 in

Body Height - Relay 2.75 in

Body Width 1.38 in

Body Width - Relay 1.37 in

Coil Resistance 470 ohm

Coil Voltage 24V DC

Coil Voltage Type DC

Coil Volts 24V DC

Contact Composition 3 NO + 3 NC

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating 10A @ 277VAC/30VDC

Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC)

Contact Rating (DC) 10 A @ 28V

Contacts Material Silver alloy, gold flashed

Control Circuit Voltage Limits 0.8...1.1 Un DC

Country of Origin (subject to change) China

Current Rating 10 A

DC Contact Rating - Relay 10A @ 28V

Depth 1.40 in (35.5 mm)

Dielectric Strength 1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact

Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC

Electrical Connection Blade Terminal

Electrical Connection Type Tab

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Flat Pin Width 0.189 in

Height 2.77 in (70.3 mm)

Horsepower @ 120V AC 1/3 hp

HP @ 120V 1/3 hp

Input Voltage 24V DC

IP Rating IP40

Item - Relay Flange Mount Relay

Local Signalling Flag

Maximum Operating Temperature 131 Degrees F

Maximum Switching Voltage 250V, 300V

Mechanical Durability 5000000 cycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Motor Rated Yes

Mounting Side

Mounting - Relay Side Flange

Mounting Style Side Flange

Mounting Support plug-in; Side flange

Number of Pins 11

Number of Pins - Relay 11

Operating Current 10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)

Operating Time 20 ms

Overall Depth 2.77 in

Overall Height - Relay 2.75 in

Package Quantity 1

Pin Shape Flat

Pins 11

Power Consumption 1.4 W

Power Consumption - Relay 1.4 W

Product Certifications UL; CSA; CE; EAC

Product Type Plug-in electromechanical relay

Rated Operational Current 10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC

Rated Power in HP 0.33 HP 120 V AC; 1 HP 277 V AC

Relay Mounting Style Surface (Side Flange)

Resistance Properties Shock-Resistant, Vibration-Resistant

Response Time 20 msec

Sealing Enclosed

Series 788R Series

Shock Resistance 10 gn

Socket Code Configurator Surface (Side Flange) / Square / 11 / 0.189 in

Standards CE Certified, CSA Certified, EAC, UL Listed

Status Indicator Mechanical Flag

Vibration Resistance +/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation

Weight 2.93 oz
