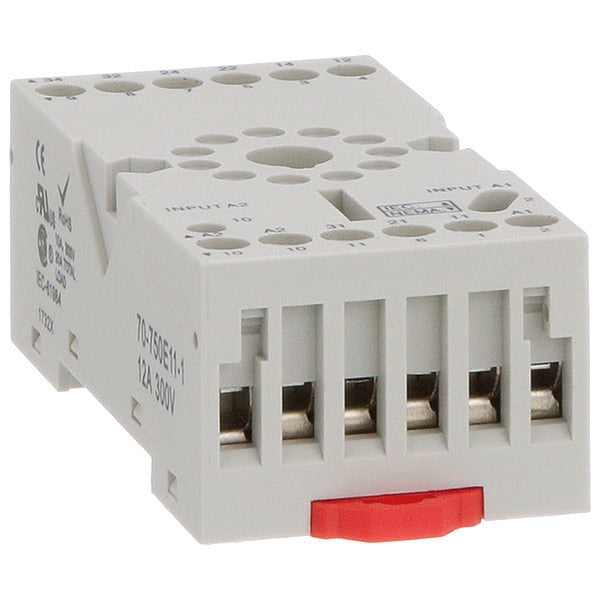

Relay Socket, Elevator, Octal, 11 Pin

SKU
Brand Schneider Electric
Categories
Description Relay Socket, Base Style Octal, Contact Form 3PDT, Current Rating 12 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 11, Number of Terminals 11, Pin Shape Round, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color White, Compatible Relays 750R Series, Contact Rating (AC) 12 A @ 300V, Depth 2.24 in, Height 1.06 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F

Web Price

$10.44 / each

Qty

Product Details

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 221ÃÂ°F (-40 to 105ÃÂ°C)

Base Style Octal

Base Style - Relay Socket Octal

Color White

Compatible Relays 750R Series

Connections Terminals Panel lift terminals, clamping connection capacity:2 x 2.5...2 x 4 mmÃÂ², AWG 14...AWG 12 flexible with cable end

Contact Composition 3 NO + 3 NC

Contact Form 3PDT

Contact Form - Relay Socket 3PDT

Contact Rating 12A @ 300VAC

Contact Rating (AC) 12 A @ 300V

Contact Rating - Relay Socket 12A @ 300V AC

Contact Terminal Arrangement Separate

Country of Origin (subject to change) China

Current Rating 12 A

Depth 2.24 in

Depth - Relay Socket 2.95 in

Electrical Connection Screw Clamp

Electrical Connection - Relay Socket Screw Clamp

Electrical Connection Type Screw

Finger Safe Yes

Fixing Mode By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail

Flame Retardance UL94-V0

Flat Pin Width Not Applicable

Height 1.06 in

Height - Relay Socket 1.06 in

IP Rating IP20

Item - Relay Relay Socket

Length 2.95

Maximum Operating Temperature 131 Degrees F

Minimum Operating Temperature -40 Degrees F

Mounting Din Rail

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Number of Pins 11

Number of Pins - Relay 11

Number of Terminals 11

Package Quantity 1

Pin Shape Round

Product Certifications UL; CSA; CE

Product Compatibility relay 750XCXR; relay 750XCXH; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR; jumper wire 16-750CBJ-1

Product Range Legacy

Product Type Socket

Shape of Screw Head Combination roundhead

Socket Code B

Socket Code Configurator Octal / 11

Socket Design Standard

Socket Mounting Style DIN-Rail

Socket Style Octal

Socket Type Standard, Finger Safe

Socket Type - Relay Finger Safe, Standard

Standards CE Certified, CSA Certified, UL Listed

Status Indicator None
