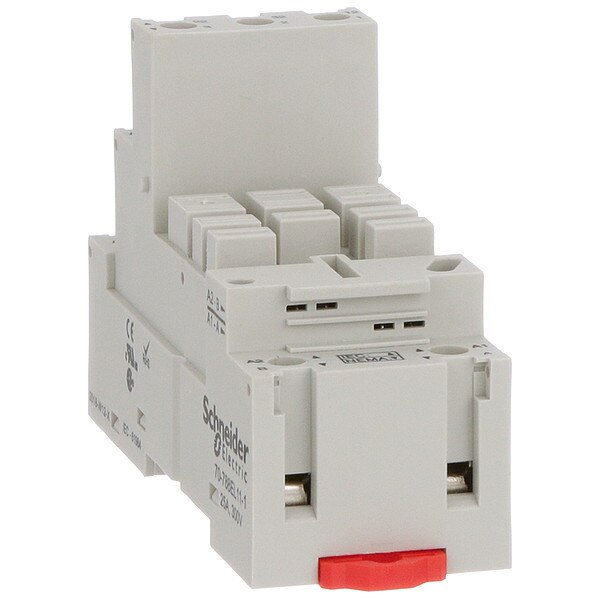

Relay Socket, Elevator, Square, 11 Pin

Relay Socket, Elevator, Square, 11 Pin

  • Schneider Electric
  • Relay Socket, Base Style Square, Contact Form 3PDT, Current Rating 25 A, Electrical Connection Screw Clamp, Flat Pin Width 0.189 in, Number of Pins 11, Number of Terminals 11, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color White, Compatible Relays 788R Series, Contact Rating (AC) 25 A @ 300V, Depth 2.24 in, Height 2.48 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F

    graingerSKU: 6CVE8, mscSKU: , zoro_no: G1864527, mongo_id: 65bbe9d422d7a989a997df2c

Web Price
$12.69 / each
Qty

Product Details

-40 to 131°F (-40 to 55°C)
-40 to 221°F (-40 to 105°C)
Square
Square
White
788R Series
lift terminals solid for output; lift terminals stranded for output
3 NO + 3 NC
3PDT
3PDT
25A @ 300VAC
25 A @ 300V
25A @ 300V AC
Separate
China
25 A
2.24 in
3.7 in
Screw Clamp
Screw Clamp
Screw
Yes
Clip-on 35 mm symmetrical DIN rail
UL94-V0
0.189 in
2.48 in
2.48 in
IP20
Relay Socket
3.70
131 Degrees F
-40 Degrees F
Din Rail
DIN Rail
DIN Rail
11
11
11
1
Flat
UL; CSA; CE
relay 788XBXR/XCXR; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG
Legacy
Socket
C
Square / 11 / 0.189 in
Standard
DIN-Rail
Square
Standard, Finger Safe
Elevator, Finger Safe
CE Certified, CSA Certified, UL Listed
None
Screw Clamp
< 0.8 N.m
300VAC
3.39 oz
1.42 in
1.4 in
300 V
