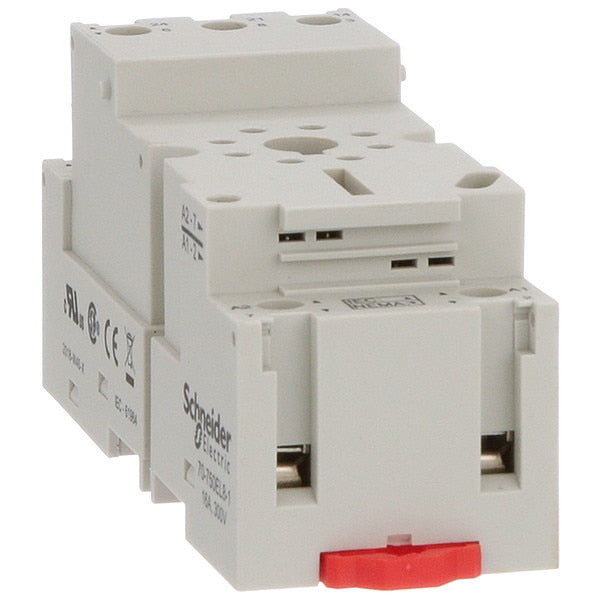

Relay Socket, Finger Safe, Octal, 8 Pin, 16A

SKU
Brand Schneider Electric
Categories
Description Relay Socket, Base Style Octal, Contact Form DPDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 8, Number of Terminals 8, Pin Shape Round, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color White, Compatible Relays 750R Series, Contact Rating (AC) 16 A @ 300V, Depth 2.24 in, Height 1.77 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
graingerSKU: 6CVE1, mscSKU: , zoro_no: G2427792, mongo_id: 65bbe7943aaddbd5a90a2704

Web Price

$10.69 / each

Qty

Product Details

Ambient Air Temperature for Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 221ÃÂ°F (-40 to 105ÃÂ°C)

Base Style Octal

Base Style - Relay Socket Octal

Color White

Compatible Relays 750R Series

Connections Terminals lift terminals flexible; lift terminals solid

Contact Composition 2 NO + 2 NC

Contact Form DPDT

Contact Form - Relay Socket DPDT

Contact Rating 16A @ 300VAC

Contact Rating (AC) 16 A @ 300V

Contact Rating - Relay Socket 16A @ 300V AC

Contact Terminal Arrangement Separate

Country of Origin (subject to change) China

Current Rating 16 A

Depth 2.24 in

Depth - Relay Socket 3.77 in

Electrical Connection Screw Clamp

Electrical Connection - Relay Socket Screw Clamp

Electrical Connection Type Screw

Finger Safe Yes

Fixing Mode By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail

Flame Retardance UL94-V0

Flat Pin Width Not Applicable

Height 1.77 in

Height - Relay Socket 1.77 in

IP Rating IP20

Item - Relay Relay Socket

Length 3.77

Maximum Operating Temperature 131 Degrees F

Minimum Operating Temperature -40 Degrees F

Mounting Din Rail

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Number of Pins 8

Number of Pins - Relay 8

Number of Terminals 8

Package Quantity 1

Pin Shape Round

Product Certifications UL; CSA; CE

Product Compatibility relay 750XBXR; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR; jumper wire 16-750CBJ-1

Product Range Legacy

Product Type Socket

Shape of Screw Head Combination roundhead

Socket Code A

Socket Code Configurator Octal / 8

Socket Design Standard

Socket Mounting Style DIN-Rail

Socket Style Octal

Socket Type Standard, Finger Safe

Socket Type - Relay Elevator, Finger Safe

Standards CE Certified, CSA Certified, UL Listed

Status Indicator None
