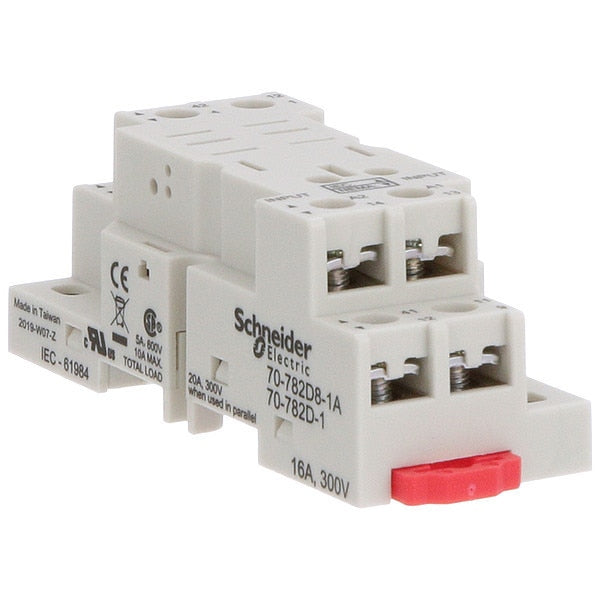

Relay Socket, Finger Safe, Square, 8 Pin

Relay Socket, Finger Safe, Square, 8 Pin

  • Schneider Electric
  • Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width 0.187 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 782 Series, Contact Rating (AC) 16 A @ 300V, Depth 2.24 in, Height 1.18 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature -40 Degrees F

    graingerSKU: , mscSKU: , zoro_no: G0872785, mongo_id: 65bbe6103aaddbd5a9004ebc

Web Price
$12.31 / each
Qty

Product Details

-40 to 131°F (-40 to 55°C)
-40 to 221°F (-40 to 105°C)
Square
Square
White
782 Series
screw clamp terminals solid for output; screw clamp terminals stranded for output
2 NO + 2 NC
DPDT
DPDT
16A @ 300VAC
16 A @ 300V
16A @ 300V AC
Mixed
China
16 A
2.24 in
3.33 in
Screw Clamp
Screw Clamp
Screw
Yes
By screw M3.5, M3.5 panel; Clip-on 35 mm symmetrical DIN rail
UL94-V0
0.187 in
1.18 in
1.18 in
IP20
Relay Socket
3.33
131 Degrees F
-40 Degrees F
Din Rail
DIN Rail
DIN Rail
8
8
8
1
Flat
UL; CSA; CE
relay 782XBX; diode 70-BSMD; signalling device 70-BSMLG; suppressor module 70-BSMM
Legacy
Socket
Combination roundhead
J
Square / 8 / 0.187 in
Standard
DIN-Rail
Square
Standard, Finger Safe
Elevator, Finger Safe
CE Certified, CSA Certified, UL Listed
None
Screw Clamp
< 0.8 N.m
300VAC
1.94 oz
1.18 in
1.18 in
300 V
