Home / Release, For M9 Circuit Breaker

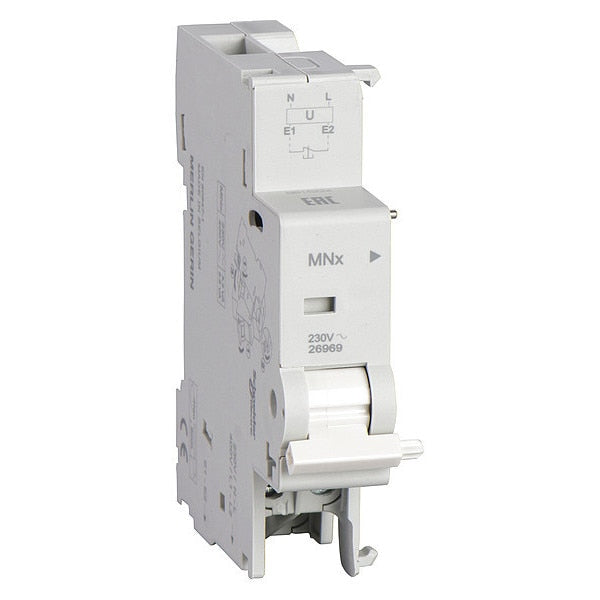

Release, For M9 Circuit Breaker

SKU
Brand Schneider Electric
Categories
Description Undervoltage Release, For Use With Multi 9 Circuit Breakers, Voltage 230V AC, Number of Poles None, Standards CSA Certified, EN/IEC 60947-1, PCT, UL Listed, UR
graingerSKU: 482K23, mscSKU: , zoro_no: G6533873, mongo_id: 65bbe7053aaddbd5a906b825

Web Price

$218.74 / each

Product Details

9 Mm Pitches 2

Accessory Type Undervoltage Release

Ambient Air Temperature For Operation -25-50 2ÃÂ°C

Ambient Air Temperature For Storage -40-85 2ÃÂ°C

Comb Busbar And Distribution Block Compatibility top YES

Connections - Terminals clamp terminal bottom) - 1 2.5-2.5 mm2ÃÂ² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2ÃÂ² AWG 16) - rigid

Control Type with external feeding

Country of Origin (subject to change) Belgium

Depth 68 mm

Device Short Name MNx

For Use With Multi 9 Circuit Breakers

Height 82.5 mm

Local Signalling action indicator

Mounting Mode fixed

Mounting Support DIN rail

Number of Poles None

Package Quantity 1

Pollution Degree 3

Product Certifications UR || UL || PCT || CSA

Product Or Component Type undervoltage release

Range Multi9

Range Compatibility Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC

Standards CSA Certified, EN/IEC 60947-1, PCT, UL Listed, UR

Tightening Torque 1-1 N.m bottom

Voltage 230V AC

Width 18 mm

Wire Stripping Length 9 mm bottom

[Uc] Control Circuit Voltage 230 V AC 50/60 Hz
