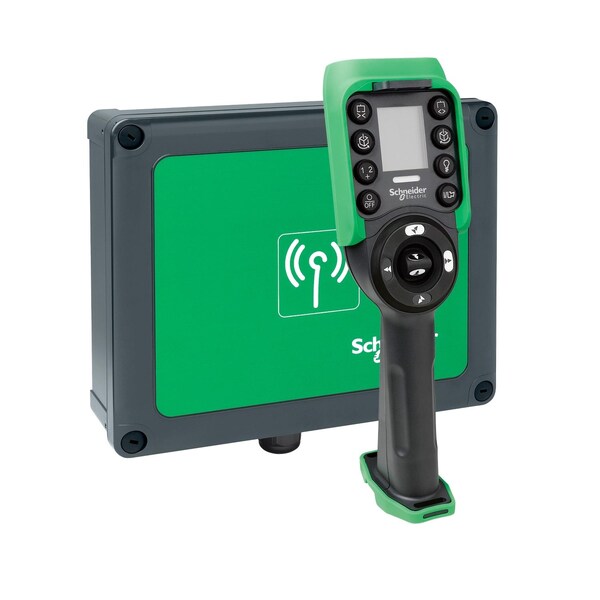

Home / Remote ZART12D Base ZARB18W

Remote ZART12D Base ZARB18W

SKU
Brand Schneider Electric
Categories
Description Remote ZART12D + Base ZARB18W
graingerSKU: , mscSKU: , zoro_no: G200422685, mongo_id: 65bbe8b722d7a989a990ff39

Web Price

$2,109.99 / each

Qty

Product Details

Cable Entry cable gland

Communication Network Type wireless bluetooth low energy

Control Station Application stop function SIL 2 maximum can reach PL d/category 3)EN/IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)EN/ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/IEC 62061 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 || motion function SIL 1 maximum can reach PL c/category 1)EN/ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/ISO 13849-1

Control Station Type wireless

Country of Origin (subject to change) France

Device Short Name XARS

Electromagnetic Compatibility resistance to electrostatic discharge 4 kV on contact)class B IEC 61000-4-2 || resistance to electrostatic discharge 8 kV in air)class B IEC 61000-4-2 || resistance to radiated electromagnetic fields 10 V/mclass B IEC 61000-4-3

Kit Composition remote control || base station

Number Of Channels 50

Operating Distance 100 m in free air

Package Quantity 1

Product Certifications CE || UL || CSA || C-tick || JIS || KC || EAC

Product Or Component Type control station

Product Specific Application material handling || hoisting applications

Radio Agreement FCC || ANATEL || ARIB || SRRC || ICASA || RSS

Relative Humidity 0-95 % -20-45ÃÂ°C storage

Standards EN/IEC 60204-1 safety || EN 14439 hoisting applications || EN 14492 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || ETSI EN 300 440-2 radio || ETSI EN 300 328 radio || FCC part 15 radio || RSS GEN issue 3 radio || RSS 210 issue 8 radio || EN/ISO 13849-1 safety || ARIB STD-T81 radio || EN/IEC 62061 safety || EN/IEC 61508 safety || EN/ISO 13850 safety || EN/IEC 60204-32 hoisting applications || EN 13557 hoisting applications || EN 12077-2 hoisting applications || EN 15011 hoisting applications

Transmission Frequency 2.4 GHz
