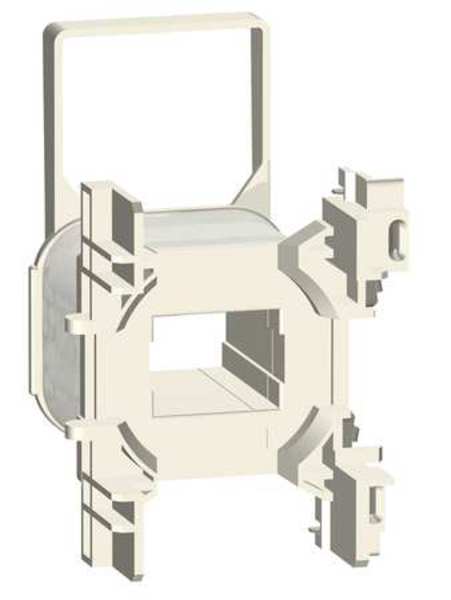

Replacement Magnetic Coil, 24VAC, 50/60 Hz

SKU
Brand Schneider Electric
Categories
Description Replacement Coil, Coil Voltage 24V AC, NEMA Size Not Applicable, Compatible with Series LC1D40A to D65A Contactors, LC1DT60A Contactors, LC1DT80A Contactors, TeSys Deca, Contactor Style IEC, Coil Power 160 VA, Frequency 50/60 Hz
graingerSKU: 12N818, mscSKU: , zoro_no: G3968072, mongo_id: 65bbee3c526e052139afbd6b

Web Price

$77.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -5-60 ÃÂ°C

Average Resistance 1.98 Ohm 20 ÃÂ°C

Coil Power 160 VA

Coil Technology without built-in suppressor module

Coil Voltage 24V AC

Coil Volts 24V AC

Compatible with Series LC1D40A to D65A Contactors, LC1DT60A Contactors, LC1DT80A Contactors, TeSys Deca

Contactor Style IEC

Contactor Type IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage Limits drop-out 0.3 to 0.6 Uc 50/60 Hz 60 ÃÂ°C) || operational 0.8 to 1.1 Uc 50 Hz 60 ÃÂ°C) || operational 0.85 to 1.1 Uc 60 Hz 60 ÃÂ°C)

Country of Origin (subject to change) France

Device Short Name LXD3

For Use With TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A

Frequency 50/60 Hz

Heat Dissipation 4-5 W 50/60 Hz

Hold-In Power Consumption In Va 15-15 VA 60 Hz 0.3 20 ÃÂ°C) || 15-15 VA 50 Hz 0.3 20 ÃÂ°C)

Hz_ 50/60

Inductance Of Closed Circuit 0.12 H

Inrush Power In Va 160-160 VA 60 Hz 0.75 20 ÃÂ°C) || 160-160 VA 50 Hz 0.75 20 ÃÂ°C)

Maximum Operating Rate 3600 cyc/h 60 ÃÂ°C

Mechanical Durability 6 Mcycles

NEMA Size Not Applicable
