Home / Rlay Scket, Finger Safe, Square, 14 Pin, 16A

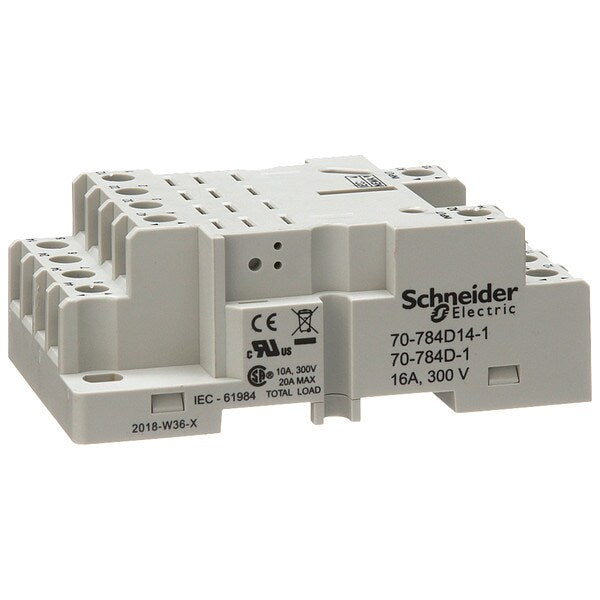

Rlay Scket, Finger Safe, Square, 14 Pin, 16A

Rlay Scket, Finger Safe, Square, 14 Pin, 16A

  • Schneider Electric
  • Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width 0.187 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 784 Series, Contact Rating (AC) 16 A @ 300V, Depth 3.13 in, Height 1.18 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature -40 Degrees F

    graingerSKU: 6CVE7, mscSKU: , zoro_no: G2677552, mongo_id: 65bbe85f9a749db82278a856

Web Price
$18.94 / each
Qty

Product Details

-40 to 131°F (-40 to 55°C)
-40 to 221°F (-40 to 105°C)
Square
Square
White
784 Series
screw clamp terminals solid for output; screw clamp terminals stranded for output
4 NO + 4 NC
4PDT
4PDT
16A @ 300VAC
16 A @ 300V
16A @ 300V AC
Mixed
China
16 A
3.13 in
3.33 in
Screw Clamp
Screw Clamp
Screw
Yes
By screw M3.5, M3.5 panel; Clip-on 35 x 15 mm symmetrical DIN rail
UL94-V0
0.187 in
1.18 in
1.18 in
IP20
Relay Socket
3.33
131 Degrees F
-40 Degrees F
Din Rail
DIN Rail
DIN Rail
14
14
14
1
Flat
UL; CSA; CE
relay 784XDX; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR
Legacy
Socket
Combination roundhead
F
Square / 14 / 0.187 in
Standard
DIN-Rail
Square
Standard, Finger Safe
Elevator, Finger Safe
CE Certified, CSA Certified, UL Listed
None
Screw Clamp
0.9 N.m
300VAC
2.19 oz
1.97 in
1.96 in
300 V
