Home / Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp

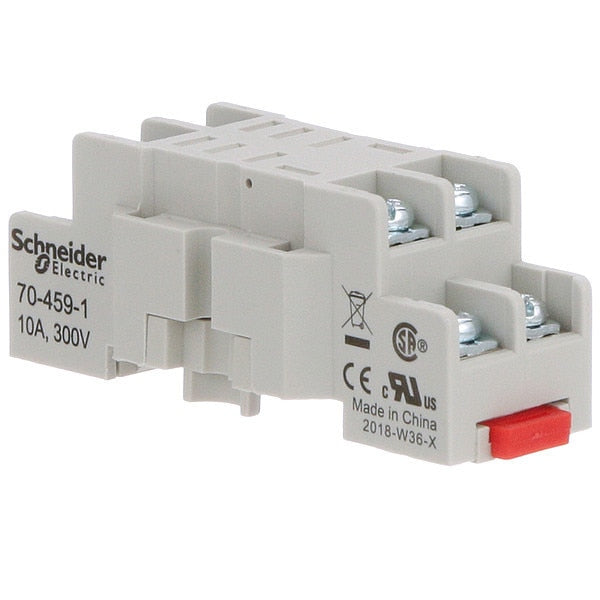

Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp

Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp

  • Schneider Electric
  • Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 10 A, Electrical Connection Screw Clamp, Flat Pin Width 0.187 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 782 Series, Contact Rating (AC) 10 A @ 300V, Depth 2.24 in, Height 1.02 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature -40 Degrees F

    graingerSKU: 6CVD3, mscSKU: , zoro_no: G1656015, mongo_id: 65bbe5cb3aaddbd5a9fe7f21

Web Price
$10.44 / each
Qty

Product Details

-40 to 131°F (-40 to 55°C)
-40 to 221°F (-40 to 105°C)
Square
Square
White
782 Series
Panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 solid for output; Panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 stranded for output
2 NO + 2 NC
DPDT
DPDT
10A @ 300VAC
10 A @ 300V
10A @ 300V AC
Mixed
China
10 A
2.24 in
2.73 in
Screw Clamp
Screw Clamp
Screw
Yes
By screw M3.5, M3.5 panel; By screws, M3 panel
UL94-V0
0.187 in
1.02 in
1.02 in
IP20
Relay Socket
2.73
131 Degrees F
-40 Degrees F
Din Rail
DIN Rail
DIN Rail
8
8
8
1
Flat
UL; CSA; CE
relay 782XBX
Legacy
Socket
Combination roundhead
J
Square / 8 / 0.187 in
Standard
DIN-Rail
Square
Standard, Finger Safe
Elevator
CE Certified, CSA Certified, UL Listed
None
Screw Clamp
< 1 N.m
300VAC
1.76 oz
1.14 in
1.17 in
300 V
