Name: Rope Pull Switch Transmitter, plastic
Brand: Schneider Electric
SKU: G6142884
Price: 203.74 USD
Availability: OutOfStock

Home / Rope Pull Switch Transmitter, plastic

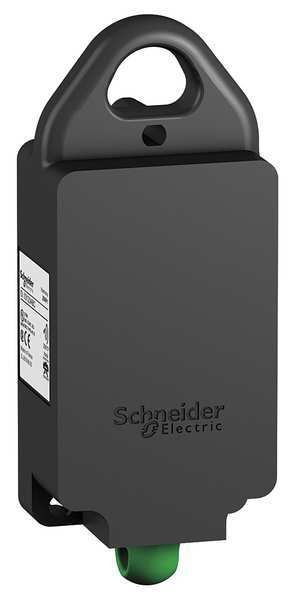

Rope Pull Switch Transmitter, plastic

SKU
Brand Schneider Electric
Categories
Description Rope Pull Switch Transmitter, Wireless/Batteryless, NEMA 4X, For Use With Harmony Series, Power Rating 3mW, Material Plastic, Overall Length 5.63 In., Standards EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
graingerSKU: 19RT34, mscSKU: 69675627, zoro_no: G6142884, mongo_id: 65bbe58c3aaddbd5a9fcdb26

Web Price

$203.74 / each

Product Details

Accessory Type Black Wireless, Batteryless Rope Pull Switch Transmitter, Rope Pull Type

Acquisition Time 2 ms

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Antenna Gain 0 dBi

Antenna Type omnidirectional

Bandwidth 5-5 MHz

Bezel Material plastic

Cad Overall Depth 38 mm

Cad Overall Height 144 mm

Cad Overall Width 56 mm

Communication Port Protocol Zigbee green power 2.4 GHz IEEE 802.15.4

Country of Origin (subject to change) France

Device Short Name XB5R

Electromagnetic Compatibility electrostatic discharge immunity test 8 kV in free air (in insulating parts)) || electrostatic discharge immunity test 6 kV on contact (on metal parts)) || susceptibility to electromagnetic fields 10 V/m 80 to 2000 MHz) || susceptibility to electromagnetic fields 3 V/m 80 to 2700 MHz, distance = 20 m) || immunity for industrial environments || radiated emission

Emission Power 3 mW

Features Mechanical durability 1,000,000 Cycles, NEMA 4X, No battery needed

Fixing Mode by screw 1.8-2.2 N.m

For Use With Harmony Series

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 outdoor)

Level Or Class 5M00G7W

Material Plastic

Max Power Consumption In W 1 mW

Maximum Sensing Distance 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Mechanical Durability 1000000 cycles

Mechanical Robustness free fall resistance 1000 mm EN/IEC 60068-2-32

Modulation Technique O-QPSK

Mounting Mode between 2 ropes || panel-mounted

Nema Degree Of Protection NEMA 4X outdoor

Number Of Channels 16

Operating Position any position

Overall Length 5.63 in

Package Quantity 1

Power Rating 3mW

Product Certifications CCC || BT 2006/95/EC || CSA || UL || C-tick || GOST

Product Or Component Type wireless and batteryless transmitter

Pulling Force 45-1000 N

Radio Agreement ANATEL || ARIB T66 || FCC || ICASA || RSS || SRRC

Relative Humidity 95-95 % -25-70ÃÂ°C without condensation

Response Time < 2 ms

Shock Resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508

Transmission Frequency 2405 MHz

Vibration Resistance 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
