Home / RS485 Safe communications expansion modu

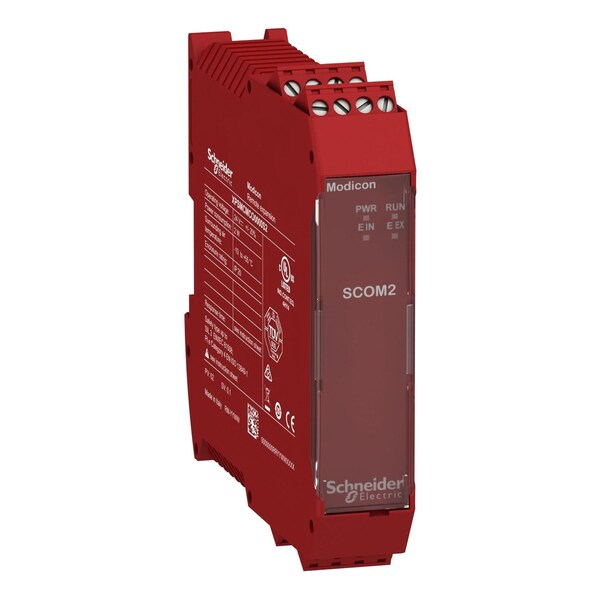

RS485 Safe communications expansion modu

RS485 Safe communications expansion modu

  • Schneider Electric
  • RS485 Safe communications expansion modu

    graingerSKU: , mscSKU: , zoro_no: G4056708, mongo_id: 65bbe8979a749db82279dde8

Web Price
$449.99 / each
Qty

Product Details

-10-55 °C
-20-85 °C
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
RS485
4 captive screw clamp terminals, removable terminal block
4 ways RS485
Italy
0.125 mA
114.5 mm
XPSMCM
electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
99 mm
250 V AC between power supply and housing EN/IEC 61800-5-1
IP20
LED green PWR power ON || LED green RUN operating || LED red E IN internal error || LED red E EX external error
50 m
omega 35 mm DIN rail EN 50022
2
6561.68 ft (2000 m)
II
1
2
3 W
cULus || RCM || TœV
safe communication expansion module
CE
Preventa XPSMCM
10-95 %
can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || can reach SILCL 3 IEC 62061
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
22.5 mm
24 V - 20...20 % DC
