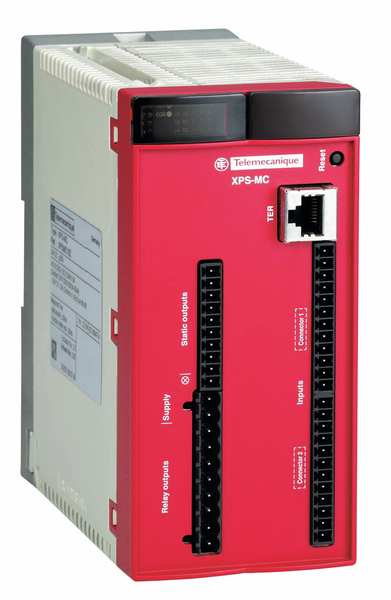

Safety Controller, 24VDC, 16 Inputs
Web Price
$1,706.24
/ each
Product Details
-10-55 ðC
-25-85 ðC
16 A gL power supply || 4 A gL relay output || 6 A fast blow relay output
180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output, 2 A 24 V static output circuit || 1.5 A 24 V DC-13)50 ms relay output
Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
France
1 start bit/8 data bits || 1 stop bit even or odd || 2 stop bits without parity || RTU (Remote Terminal Unit) mode
6.02 in
Plastic
14 words
1 RJ45 (Programming + Modbus)
dynamic monitoring of hydraulic valves on linear presses || monitoring safety stop at top dead centre on eccentric press || muting function of light curtains || position selector || safety mat monitoring || safety time delays || shaft/chain breaking monitor || zero speed detection || light curtain monitoring category 4 EN/IEC 61496 || two-hand control category 3 EN 574/ISO 13851 || eccentric press || emergency stop monitoring, with or without time delay, 1 or 2-channel wiring || enabling switch monitoring, 2 or 3 contacts || foot switch monitoring || guard monitoring for injection presses and blowing machines || guard monitoring with 1 or 2 limit switches || hydraulic press || magnetic switch monitoring
5.96 in
24V DC
external fuse 16 A
IP20 conforming to EN/IEC 60529
20
30 LEDs
100 Ohm <2000 m
slave
10 mA relay output
17 V relay output
Surface or DIN rail
mounting plate
1-247 Modbus
16
-10 to 55 Degrees C
4 A for both outputs simultaneously || 6 A for 1 output and 2 A for the other relay output
2 relays, 2 NO contacts (4 NO total) || solid state, 6, volt-free
1
even Modbus || no Modbus || odd Modbus
12 W
TUV || UL || CSA
configurable safety controller
20 msec
can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 || can reach SIL 3 IEC 61508
XPSMC
4NO
1.5A @ 24V DC
category 4 maximum EN 954-1/EN/ISO 13849-1 || PLE maximum EN/ISO 13849-1 || SIL 3 maximum IEC 61508
CSA, TUV, UL
01 8-bit output data/32-bit input data || 02 32-bit input data/8-bit output data || 03 information and errors
depending on configuration selected
configurable
2.91 in
16 A relay output || 6.5 A static output circuit
28.8 V
4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
24 V DC - 20 to 20 %
