Safety Monitoring Relay, Panel

SKU
Brand Schneider Electric
Categories

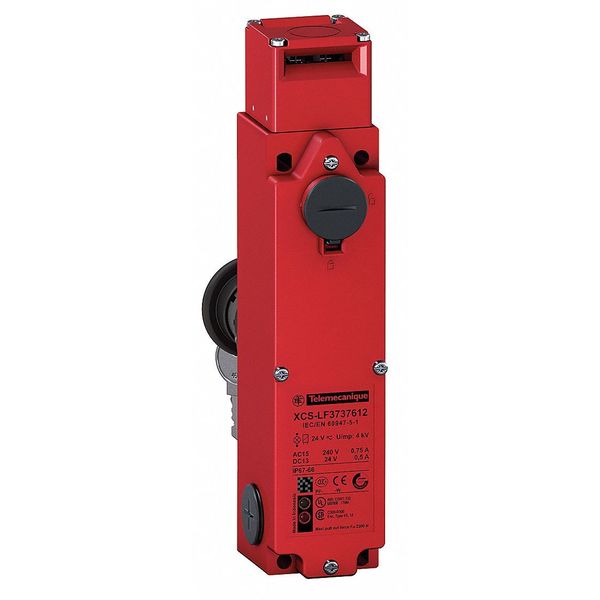

Description Safety Interlock Switch, Contact Form 1NO/2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 4A @ 300V AC, Series XCSL, DC Contact Rating 3A @ 300V, Height 8.1 in, Width 1.71 in, Depth 2.01 in, NEMA Rating 12, 4, 4X, IP Rating 67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak, Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight
graingerSKU: 20JM70, mscSKU: , zoro_no: G6627205, mongo_id: 65bbe7e49a749db82276100a

Web Price

$819.99 / each

Qty

Product Details

AC Contact Rating 4A @ 300V AC

Actuator Length Key Dependent

Ambient Air Temperature For Operation -25-60ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material Zamak

Cable Entry 3 entries tapped 1/2 NPT

Coil Volts 24VAC/DC

Component Name XCSLF

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Configuration 3NO/1NC Aux.

Contact Form 1NO/2NC

Contact Load Rating 2.5A

Contact Operation slow-break, break before make

Contacts Type And Composition 2 NC + 1 NO

Country of Origin (subject to change) Indonesia

DC Contact Rating 3A @ 300V

Depth 2.01 in

Description/Special Features Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight

Design slim

Electrical Connection spring terminal 1 x 1.5 mmÃÂ² flexible or solid cable || spring terminal 2 x 0.5 mmÃÂ² flexible cables with 13 mm bared ends

Electrical Shock Protection Class class I EN/IEC 61140

Electromagnet Interlocking by mushroom head push-button turn to release for escape release || locking on de-energisation and unlocking on energisation of solenoid

Environmental Protection IP67

For Use With Mfr. No. XCSZ01, XCSZ02, XCSZ03, XCSZ05

Head Material Zamak

Head Type key operated turret head

Height 8.1 in

Input Voltage 24VAC

Ip Degree Of Protection IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

IP Rating 67

Load Factor 1

Local Signalling for actuator withdrawn 1 LED (orange) || for actuator inserted and locked 1 LED (green)

Material metal

Maximum Actuation Speed 0.5 m/s

Maximum Actuator Forcible Withdrawal Rtc 3000 N

Maximum Load Current <= 15 A

Maximum Operating Rate 10 cyc/mn for maximum durability

Mechanical Durability 30000 cycles

Minimum Actuation Speed 0.01 m/s

Minimum Actuator Force For Extraction 20 N

Minimum Switching Current 10 mA at 20ÃÂ°C

Minimum Switching Voltage 17 V

Mounting Panel

NEMA Rating 12, 4, 4X

Number Of Poles 3

Operating Force 4.5 lb

Operating Temp. Range -13 Degrees to 158 Degrees F

Package Quantity 1

Positive Opening with NC contact

Power Consumption 5.4W

Product Certifications UL || CSA || TUV

Product Or Component Type safety switch

Protective Treatment TC

Resistance To Mechanical Impact 9.6 J against the partition || 6.4 J without partition

Safety Level can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508

Series XCSL

Shock Resistance 10 gn 11 ms IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG (gl) || 6 A fast blow

Signalling Circuit Type AC/DC

Signalling Circuit Voltage 24 V

Solenoid Contacts Type And Composition 2 NC + 1 NO slow-break, break before make)

Standards CE, CSA, UL

Supply Frequency 50/60 Hz

Supply Voltage Type AC/DC

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6

Width 1.71 in

[Ie] Rated Operational Current 0.55 A 24 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1
