Home / Safety Relay 300V 25A Preventa

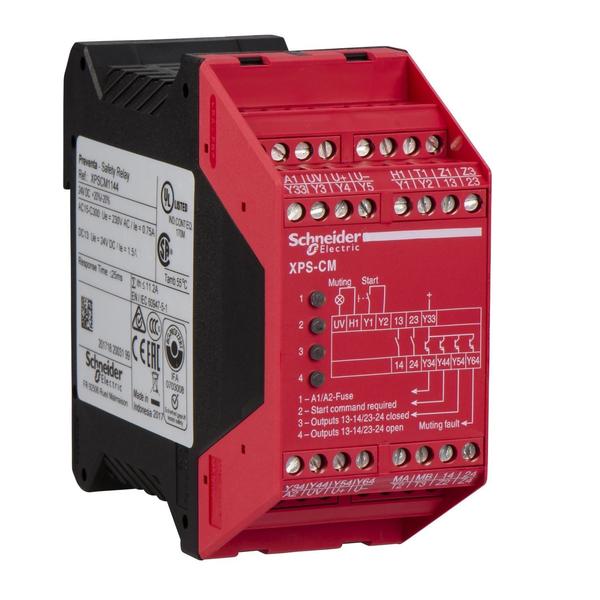

Safety Relay 300V 25A Preventa

SKU
Brand Schneider Electric
Categories
Description Safety Controller 300V 25A Preventa
graingerSKU: , mscSKU: , zoro_no: G0853889, mongo_id: 65bbe58a3aaddbd5a9fccc21

Web Price

$819.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -25-85ÃÂ°C

Associated Fuse Rating 4 A gG relay output DIN VDE 0660 part 200 || 4 A gG relay output EN/IEC 60947-5-1 || 6 A fast blow relay output DIN VDE 0660 part 200 || 6 A fast blow relay output EN/IEC 60947-5-1

Breaking Capacity 20 mA 24 V solid state output || 1.5 A 24 V DC-13)50 ms relay output, 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output

Connections - Terminals captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mmÃÂ² solid or flexible without cable end || captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mmÃÂ² flexible with cable end, with bezel || captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mmÃÂ² flexible with cable end, without bezel || captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mmÃÂ² solid without cable end || captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mmÃÂ² flexible without cable end || captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mmÃÂ² flexible with cable end, without bezel || captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mmÃÂ² flexible with cable end, with double bezel

Country of Origin (subject to change) Multiple

Function Of Module built-in muting

Input Compatibility XC limit switch muting function || XU2M18PP340... muting function || XU2S18PP340... (infrared) sensor || XU9M18PP340... muting function

Input Current 200 mA muting function

Input Voltage 24 V DCsensor || 24 V DC U+, U-)muting function

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP40 IEC 60529 enclosure)

Local Signalling 1 LED electronic internal fuse status || 1 LED restarting || 1 LED safety outputs closed || 1 LED safety outputs open || 1 incandescent lamp muting 4-6.5 W

Maximum Line Resistance 10 Ohm sensor power supply

Maximum Response Time On Input Open 25 ms

Maximum Supply Current For Sensors 200 mA

Minimum Output Current 10 mA relay output

Minimum Output Voltage 17 V relay output

Muting Maximum Duration 60 s - 10...30 %)

Number Of Additional Circuits 0

Number Of Inputs 2 MA, MB)muting function || 4 Z1, Z2, Z3, Z4)sensor

Output Thermal Current 5.6 A per relay || 11 A maximum

Output Type relay 2 NO 13-14, 23-24), volt-free

Package Quantity 1

Power Consumption In W 15 W

Product Or Component Type safety module

Protection Type electronic internal fuse

Safety Level can reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1 || can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061 || can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1

Safety Module Application for monitoring of single beam photo-electric sensor

Safety Module Name XPSCM

Sensor Power Supply U+, U- 24-24 V DC

Synchronisation Time Between Inputs 3 s +/- 20 %) for the activation of the MA/MB muting signal

[Uimp] Rated Impulse Withstand Voltage 4 kV III DIN VDE 0110 parts 1 and 2 || 4 kV III EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 300 V 2)DIN VDE 0110 parts 1 and 2 || 300 V 2)EN/IEC 60947-5-1

[Us] Rated Supply Voltage 24 V DC - 20...20 %
