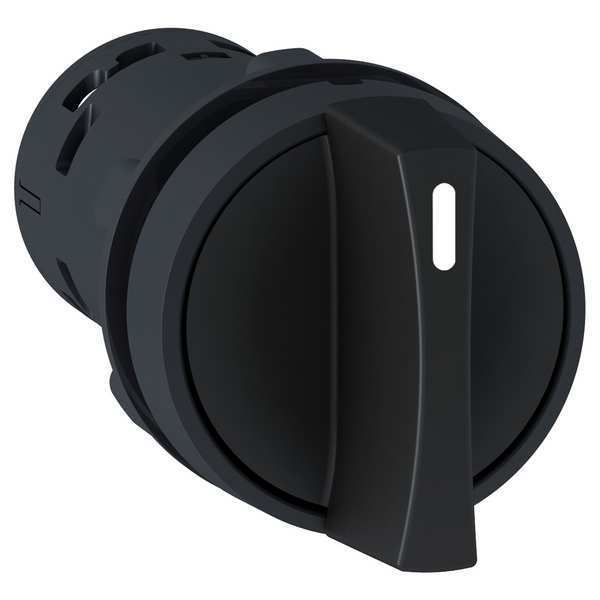

Selector 3Pos 2No, 22 mm, 2NO, Black

SKU
Brand Schneider Electric
Categories
Description Selector 3Pos 2No, 22 mm, 3 Position, Maintained / Maintained / Maintained Action, 2NO Contact Form, Type of Operator Knob, Color Black, No Key Key Removal, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 3, IP Rating 20, 65, Standards IEC 60529, Package Quantity 10
graingerSKU: 615C06, mscSKU: , zoro_no: G1012503, mongo_id: 65bbe83422d7a989a98e1ae2

Web Price

$35.19 / each

Qty

Product Details

Action Maintained / Maintained / Maintained

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Color Black

Bezel Material Plastic

Cad Overall Depth 68.5 mm

Cad Overall Height 29 mm

Cad Overall Width 29 mm

Color Black

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 2NO

Contact Operation slow-break

Contacts Type And Composition 2 NO

Country of Origin (subject to change) Indonesia

Device Mounting fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Device Short Name XB7

Electrical Durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 17 V 5 mA IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Fixing Center >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Fixing Mode fixing nut 2-2.4 N.m

Ip Degree Of Protection IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

IP Rating 20, 65

Key Removal No Key

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 12 UL 50 E || NEMA 3 UL 50 E

NEMA Rating 12, 3

Operator Head Material Plastic

Operator Position Information 3 positions +/- 45ÃÂ°

Operator Profile black standard handle

Package Quantity 10

Position 3

Positive Opening without

Product Or Component Type selector switch

Protective Treatment TH

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards IEC 60529

Terminals Description Iso NÃÂ°1 (23-24)NO || (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Knob

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
