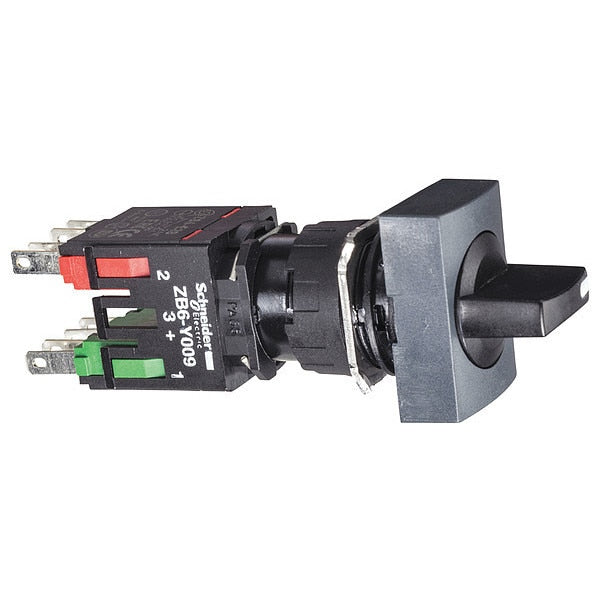

Selector Switch, 16mm Sz, 2 Position

SKU
Brand Schneider Electric
Categories
Description Selector Switch, 16 mm, 2 Position, Maintained / Maintained Action, 2 NO Contact Form, Type of Operator Lever, Color Black, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Rating 13, 4, 4X, IP Rating 65, Switch Operation @ Position C No Third Position, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
graingerSKU: , mscSKU: , zoro_no: G3604414, mongo_id: 65bbe7033aaddbd5a906aac8

Web Price

$41.56 / each

Qty

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Color Black

Bezel Material Plastic

Color Black

Connections - Terminals Faston connectors 2.8 x 0.5 mm

Contact Form 2 NO

Contact Operation slow-break

Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 2 NO

Country of Origin (subject to change) Mexico

Depth 68 mm

Device Short Name XB6

Electrical Durability 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Height 18 mm

Includes Standard Handle

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Mechanical Durability 500000 cycles

Mounting Diameter 16 mm

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

NEMA Rating 13, 4, 4X

Operating Position any position

Operator Position Information 3 positions 60ÃÂ°

Operator Profile black standard handle

Package Quantity 1

Position 2

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications UL || CCC || GOST || CSA

Product Or Component Type complete selector switch

Protective Treatment TC

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG

Size 16 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508

Switch Operation @ Position C No Third Position

Terminals Description Iso NÃÂ°1 (21-22)NC || (13-14)NO

Type of Operator Lever

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Width 24 mm

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
