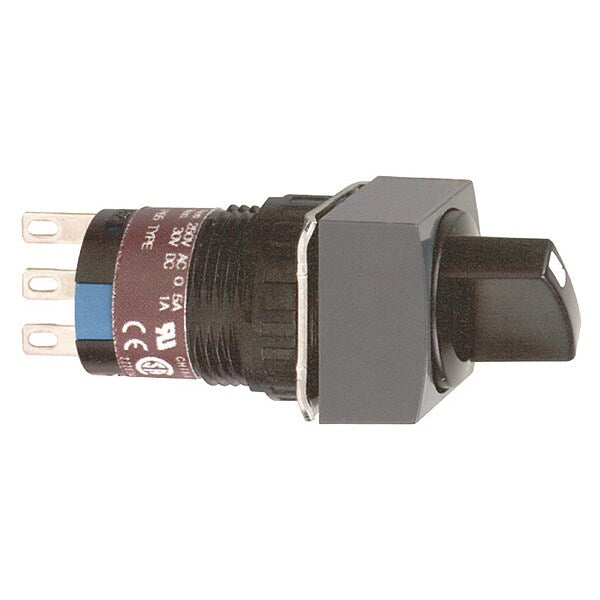

Selector Switch, 16mm Sz, 2 Position

SKU
Brand Schneider Electric
Categories
Description Selector Switch, 16 mm, 2 Position, Maintained / Maintained Action, 2 CO Contact Form, Type of Operator Lever, Color Black, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC, IP Rating 65, Switch Operation @ Position C No Third Position, Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
graingerSKU: 55WU79, mscSKU: , zoro_no: G3546646, mongo_id: 65bbe69e3aaddbd5a903faa7

Web Price

$27.36 / each

Qty

Minimum order: 5

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Color Black

Bezel Material Plastic

Color Black

Connections - Terminals insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mmÃÂ² AWG 19 || fast connector socket

Contact Form 2 CO

Contact Operation snap action

Contact Rating 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC

Contact Resistance 50 mOhm 1/6 V

Contacts Material gold-flashed silver

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) China

Device Short Name XB6E

Electrical Durability 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C

Includes Standard Handle

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Marking CE

Mechanical Durability 250000 cycles

Mounting Diameter 16 mm

Operator Position Information 2 positions

Operator Profile black standard handle

Overvoltage Category II IEC 60536

Package Quantity 1

Position 2

Product Certifications CCC || cURus

Product Or Component Type monolithic selector switch

Shape Of Signaling Unit Head square

Shock Resistance 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 2 A cartridge fuse gG

Size 16 mm

Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508

Switch Operation @ Position C No Third Position

Tightening Torque 0.6-1 N.m

Type of Operator Lever

Vibration Resistance 1 mm 10-55 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 3 A fast connector socket) || 5 A
