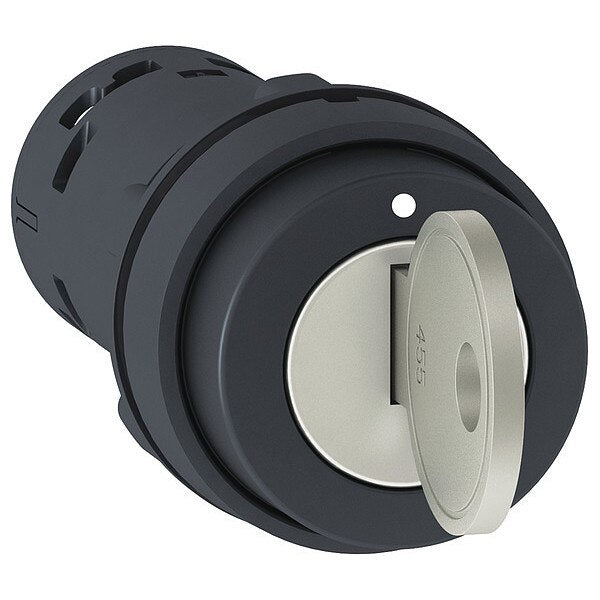

Selector Switch, 22mm Sz

SKU
Brand Schneider Electric
Categories
Description Selector Switch, 22 mm, Maintained / Maintained Action, 1NO Contact Form, Type of Operator Keyed, Color Silver, Left Key Removal, Bezel Color Black, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 0.3A @ 125V AC, 0.6A @ 120V AC, NEMA Contact Rating Designation D600/R600, NEMA Rating 12, 3, IP Rating 20, 65, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508, Includes Key
graingerSKU: , mscSKU: , zoro_no: G0200508, mongo_id: 65bbe6593aaddbd5a90230af

Web Price

$67.49 / each

Qty

Minimum order: 10

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Color Black

Cad Overall Depth 83 mm

Cad Overall Height 29 mm

Cad Overall Width 29 mm

Color Silver

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO

Contact Operation slow-break

Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 0.3A @ 125V AC, 0.6A @ 120V AC

Contacts Type And Composition 1 NO

Country of Origin (subject to change) Indonesia

Device Mounting fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Device Short Name XB7

Electrical Durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 17 V 5 mA IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Fixing Center >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Fixing Mode fixing nut 2-2.4 N.m

Includes Key

Ip Degree Of Protection IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

IP Rating 20, 65

Key Removal Left

Key Withdrawal Position left-hand

Mechanical Durability 300000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation D600/R600

Nema Degree Of Protection NEMA 12 UL 50 E || NEMA 3 UL 50 E

NEMA Rating 12, 3

Operator Position Information 2 positions 90ÃÂ°

Package Quantity 1

Positive Opening without

Product Or Component Type selector switch

Protective Treatment TH

Rated Impulse Withstand Voltage 4 kV IEC 60947-1

Rated Insulation Voltage 250 V 3)IEC 60947-1

Rated Operational Current 0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1; 0.3 A 240 V, AC-14, D300 IEC 60947-5-1; 0.6 A 120 V, AC-14, D300 IEC 60947-5-1

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508

Terminals Description Iso NÃÂ°1 (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type Of Keylock key 455

Type of Operator Keyed

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
