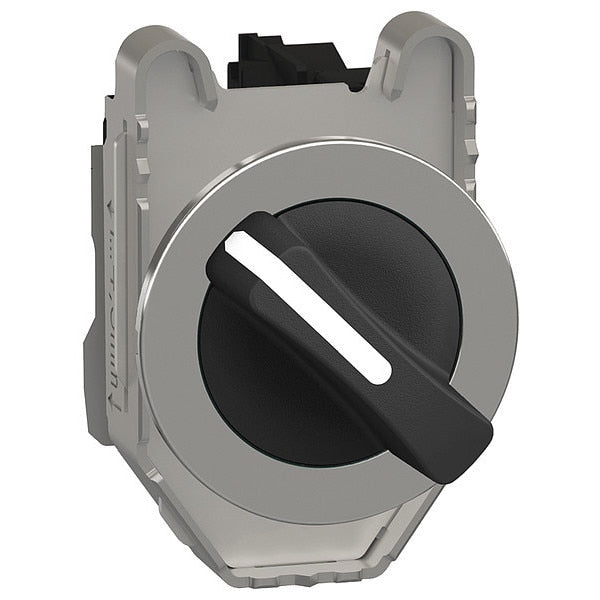

Selector Switch, 30mm Sz, 2 Position

SKU
Brand Schneider Electric
Categories
Description Selector Switch, 30 mm, 2 Position, Maintained / Momentary Action, 1NO Contact Form, Type of Operator Selector Switch, Color Black, No Key Key Removal, Basic Material Metal, Bezel Material Chromium Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, IP Rating 66, 67, 69, 69K, Switch Operation @ Position C No Third Position

Web Price

$55.31 / each

Qty

Product Details

Action Maintained / Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Color Chrome

Bezel Material Chromium Plated Metal

Color Black

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO

Contact Operation slow-break

Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO

Contacts Usage standard contacts

Country of Origin (subject to change) France

Depth 70 mm

Device Mounting built-in

Device Presentation complete product

Device Short Name XB4F

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Fixing Center 40 x 50 mm 1 to 6 mm thick panel)

Fixing Collar Material zamak

Fixing Mode by screws

Head Type built-in-flush

Height 47 mm

Ik Degree Of Protection IK06 conforming to IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

IP Rating 66, 67, 69, 69K

Key Removal No Key

Mechanical Durability 1000000 cycles

Mounting Diameter 30.5 mm

NEMA Contact Rating Designation A600/Q600

Operator Position Information 2 positions 90ÃÂ°

Operator Profile black standard handle

Overvoltage Category class I IEC 60536

Package Quantity 1

Position 2

Positive Opening without

Product Certifications UL Listed || CSA || CCC || EAC

Product Or Component Type selector switch

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 30 mm

Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Switch Operation @ Position C No Third Position

Switch Operation @ Position D No Fourth Position

Terminals Description Iso NÃÂ°1 (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Torque Value 0.14 N.m NO changing electrical state

Type of Operator Selector Switch

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Width 36.6 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
