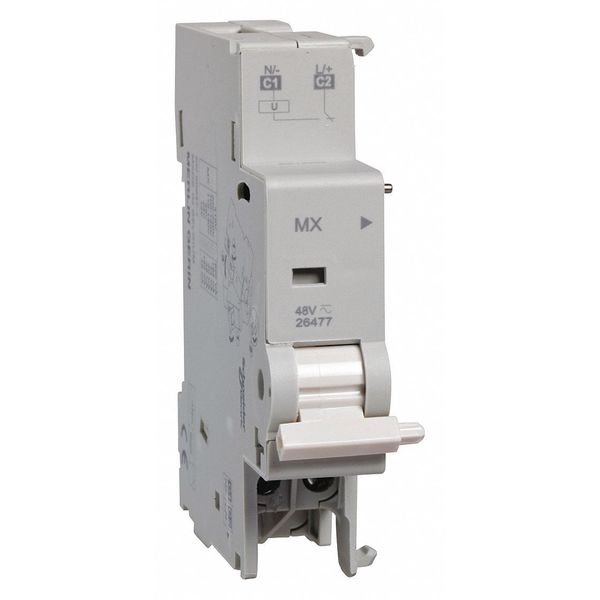

Shunt Release, For M9 Circuit Breaker

SKU
Brand Schneider Electric
Categories
Description Shunt Trip Release, AC Voltage Rating 110/415V AC, DC Voltage Rating 110/130V DC, For Use With Multi-9 Circuit Breakers, Min. Operating Temp. -13 Degrees F, Max. Operating Temp. 122 Degrees F
graingerSKU: 482K10, mscSKU: , zoro_no: G6563361, mongo_id: 65bbe5af3aaddbd5a9fdc014

Web Price

$117.94 / each

Product Details

9 Mm Pitches 2

AC Voltage Rating 110/415V AC

Accessory Type Shunt Trip Release

Ambient Air Temperature For Operation -25-50 2ÃÂ°C

Ambient Air Temperature For Storage -40-85 2ÃÂ°C

Comb Busbar And Distribution Block Compatibility top YES

Connections - Terminals clamp terminal bottom) - 1 2.5-2.5 mm2ÃÂ² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2ÃÂ² AWG 16) - rigid

Country of Origin (subject to change) Belgium

DC Voltage Rating 110/130V DC

Depth 68 mm

Device Short Name MX

For Use With Multi-9 Circuit Breakers

Height 82.5 mm

Local Signalling action indicator

Max. Operating Temp. 122 Degrees F

Min. Operating Temp. -13 Degrees F

Mounting Mode fixed

Mounting Support DIN rail

Net Weight 0.06 kg

Number of Poles 0

Package Quantity 1

Pollution Degree 3

Product Certifications UR || PCT || CSA || UL

Product Or Component Type shunt trip release

Range Multi9

Range Compatibility Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC

Relative Humidity 95-95 % 55-55 2ÃÂ°C

Standards EN/IEC 60947-1

Tightening Torque 1-1 N.m bottom

Tropicalisation 2 EN/IEC 60947-1

Voltage 100 to 415VAC/110 to 130VDC

Width 18 mm

Wire Stripping Length 9 mm bottom

[Uc] Control Circuit Voltage 110...415 V AC 50/60 Hz || 110...130 V DC
