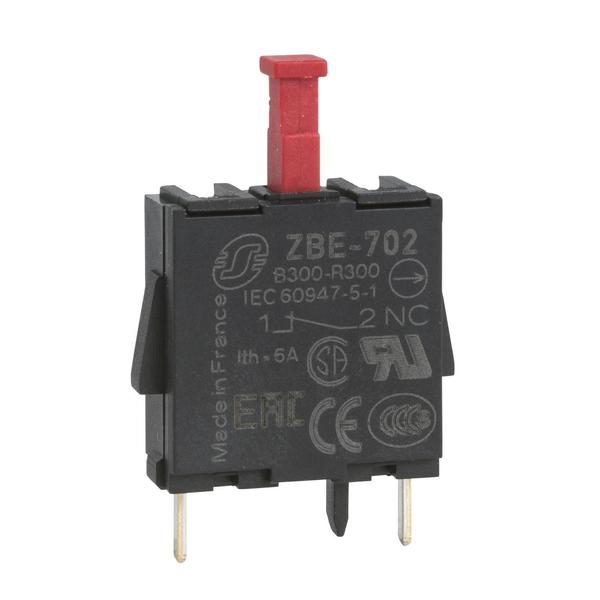

Single contact block for head 022 1NC si

SKU
Brand Schneider Electric
Categories
Description Single contact block for head 022 1NC si
graingerSKU: , mscSKU: 69536761, zoro_no: G100905486, mongo_id: 65bbe7439a749db82272b029

Web Price

$22.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Connections - Terminals pins for printed circuit board

Contact Block Type single

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Device Short Name ZBE

Ip Degree Of Protection IP20 IEC 60529

Mechanical Durability 5000000 cycles

Operating Force 2 N NC changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications CSA || UL || GL || DNV || LROS (Lloyds register of shipping) || BV

Product Or Component Type contact block

Protective Treatment TH

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Standards EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 6 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN 60947-1
