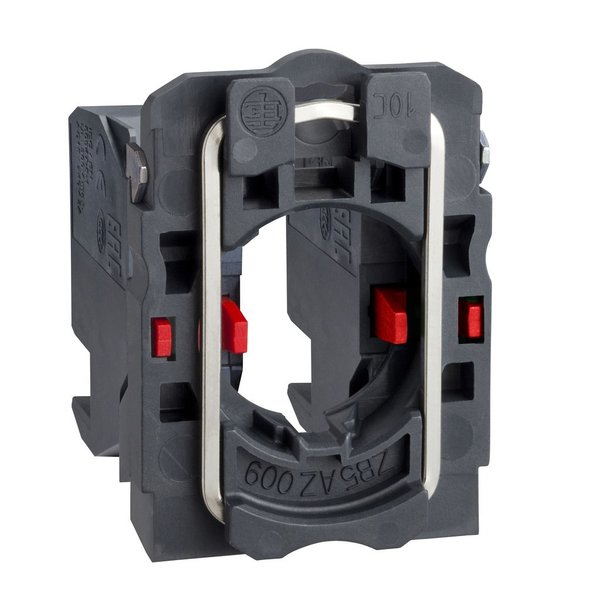

Single contact block with body/fixing co

SKU
Brand Schneider Electric
Categories
Description Single contact block with body/fixing co

Web Price

$58.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cad Overall Depth 32 mm

Cad Overall Height 42 mm

Cad Overall Width 30 mm

Connections - Terminals plug-in connector

Contact Block Type single

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 2 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Device Composition fixing collar || body

Device Short Name ZB5

Electrical Durability 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Fixing Collar Material plastic

Head Type standard

Ip Degree Of Protection IP20 IEC 60529

Mechanical Durability 10000000 cycles

Operating Travel 1.5 mm NC changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications UL || BV || GL || CSA || LROS (Lloyds register of shipping) || DNV

Product Or Component Type complete body/contact assembly

Protective Treatment TH

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Standards EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1

Terminals Description Iso NÃÂ°1 (11-12)NC

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN 60947-1
