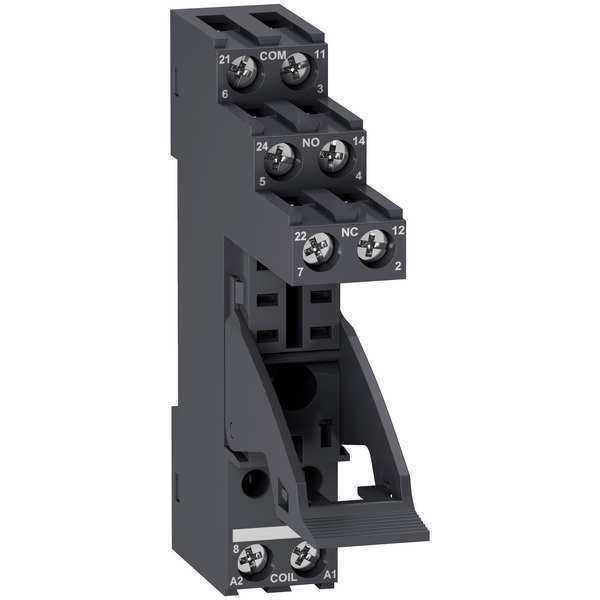

Socket 250VAC, 10A For Rxg2 Relay, PK10

SKU
Brand Schneider Electric
Categories
Description Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 5 A, Electrical Connection Screw, Flat Pin Width 0.09 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color Black, Compatible Relays Harmony(TM) RXG Series, Contact Rating (AC) 5 A @ 250V, Depth 2.87 in, Height 3.05 in, IP Rating IP20, Maximum Operating Temperature 158 Degrees F
graingerSKU: , mscSKU: , zoro_no: G1012409, mongo_id: 65bbe6103aaddbd5a9004ec3

Web Price

$8.24 / each

Qty

Minimum order: 10

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-85ÃÂ°C

Base Style Square

Base Style - Relay Socket Square

Color Black

Compatible Relays Harmony(TM) RXG Series

Connections - Terminals screw terminals, 1 x 0.25...1 x 2.5 mmÃÂ² AWG 22...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 1 mmÃÂ² AWG 22...AWG 17) flexible with cable end || screw terminals, 2 x 0.5...2 x 1.5 mmÃÂ² AWG 20...AWG 16) solid without cable end || screw terminals, 1 x 0.5...1 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end

Contact Form DPDT

Contact Form - Relay Socket DPDT

Contact Rating (AC) 5 A @ 250V

Contact Rating - Relay Socket 5A @ 250V AC

Contact Terminal Arrangement Separate

Country of Origin (subject to change) China

Current Rating 5 A

Depth 2.87 in

Depth - Relay Socket 3.03 in

Dielectric Strength 5 kV between coil and contact with reinforced insulation || 2.5 kV between contacts with basic insulation || 3 kV between poles with basic insulation || 3 kV between terminals and DIN rail with basic insulation

Electrical Connection Screw

Electrical Connection - Relay Socket Screw

Electrical Connection Type Screw

Finger Safe Yes

Flat Pin Width 0.09 in

Height 3.05 in

Height - Relay Socket 2.44 in

Ip Degree Of Protection IP20

IP Rating IP20

Item - Relay Relay Socket

Line Rated Current 5A

Maximum Operating Temperature 158 Degrees F

Minimum Operating Temperature -40 Degrees F

Mounting - Relay Plug In

Mounting Style DIN Rail

Number of Pins 8

Number of Pins - Relay 8

Number of Terminals 8

Overvoltage Category III

Package Quantity 10

Pin Shape Flat

Pollution Degree 3

Product Certifications EAC || CE || CSA || UL || DNV-GL

Product Compatibility plug-in relay RXG 2 C/O

Product Or Component Type socket

Relative Humidity 10-85 %

Screw Type M3

Socket Code K

Socket Code Configurator Square / 8 / 0.09 in

Socket Design Elevator

Socket Mounting Style DIN-Rail

Socket Type Elevator, Finger Safe

Socket Type - Relay Standard

Standards CE Certified, CSA Certified, DNV-GL, EAC, UL Listed

Status Indicator None

Width 0.62 in

Width - Relay Socket 0.62 in

[Ue] Rated Operational Voltage 250 V IEC || 300 V UL

[Uimp] Rated Impulse Withstand Voltage 6 kV between coil and contact with reinforced insulation || 4 kV between contacts with basic insulation || 4 kV between poles with basic insulation || 4 kV between terminals and DIN rail with basic insulation

[Ui] Rated Insulation Voltage 250 V
