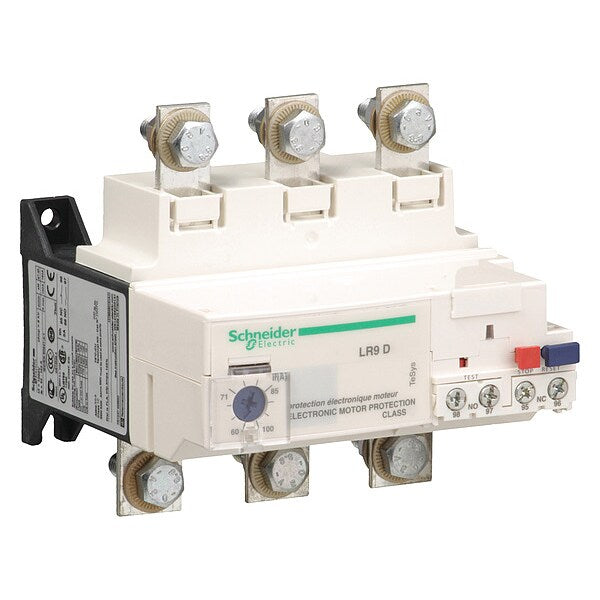

Solid State Overload Relay 575Vac 150A

SKU
Brand Schneider Electric
Categories
Description Solid State Overload Relay 575Vac 150A
graingerSKU: , mscSKU: , zoro_no: G0853566, mongo_id: 65bbe84622d7a989a98e8833

Web Price

$482.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage -60-70ÃÂ°C

Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit

Auxiliary Contact Composition 1 NO + 1 NC

Climatic Withstand IACS E10

Connections - Terminals power circuit bars || control circuit screw clamp terminals 1 0.5-1.5 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 0.5-1.5 mmÃÂ² flexible without cable end || alarm circuit screw clamp terminals 1 0.5-1.5 mmÃÂ² flexible without cable end

Control Type Red push-button stop || Blue push-button reset

Country of Origin (subject to change) France

Depth 125 mm

Device Short Name LR9D

Dielectric Strength 1.89 kV 50 Hz IEC 60947-1

Height 118 mm

Ip Degree Of Protection IP20 conforming to IEC 60529

Maximum Voltage Drop <2.5 V closed state

Mechanical Robustness vibrations2 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks13 Gn for 11 ms IEC 60068-2-7

Mounting Support under contactor || rail

Network Frequency 50-60 Hz

Network Type AC

Operating Altitude <= 6561.68 ft (2000 m) without derating

Package Quantity 1

Phase Failure Sensitivity tripping in 4 s +/- 20 % IEC 60947-4-1

Product Certifications UL || CSA || CCC || UKCA

Product Compatibility NSX circuit breaker || LC1D115 || LC1D150

Product Name TeSys LRD || TeSys Deca

Product Or Component Type electronic thermal overload relay

Range TeSys

Rated Insulation Voltage Power circuit 1000 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL

Relay Application motor protection

Signalling Function alarm

Standards EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5

Supply Voltage Limits 17-32 V

Switching Capacity In Ma 0 to 150 mA

Temperature Compensation -20-60ÃÂ°C

Thermal Overload Class class 20 IEC 60947-4-1

Thermal Protection Adjustment Range 90-150 A

Tightening Torque alarm circuit 0.45 N.m screw clamp terminals || power circuit 18 N.m bars M8 || control circuit 1.2 N.m screw clamp terminals

Tripping Threshold 1.05 +/- 0.06 In alarm IEC 60947-4-1 || 1.12 +/- 0.06 In de-energisation IEC 60947-4-1

Width 115 mm

[Ith] Conventional Free Air Thermal Current 5 A signalling circuit

[Ue] Rated Operational Voltage 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
