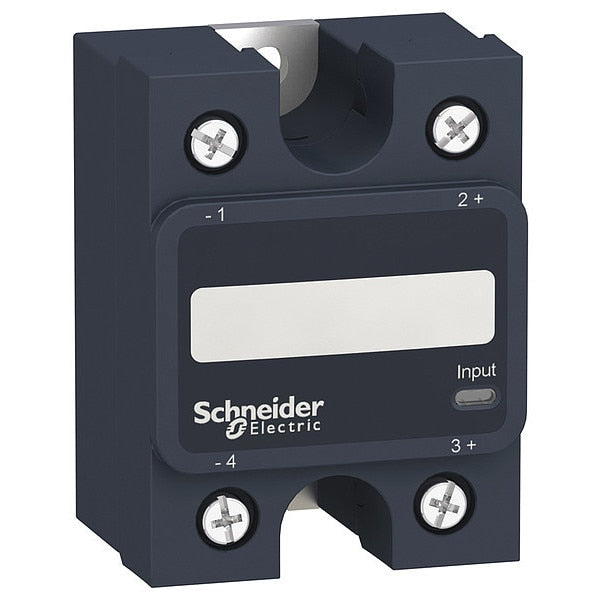

SolStateRelay, In3.5-32VDC, Out1-150VDC

SolStateRelay, In3.5-32VDC, Out1-150VDC

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 10 to 15 mA, Input Voltage 3.5 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Not Applicable, Output Voltage Range 1 to 150V DC, Standards CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed, Switch Component Type MOSFET, Current Type DC, Electrical Phase Single

    graingerSKU: 55WL03, mscSKU: , zoro_no: G0745546, mongo_id: 65bbe6543aaddbd5a9021866

Web Price
$47.86 / each
Qty

Product Details

-40-80°C
-40-125°C
1.25 in
1.35 in
2.32 in
2.32 in
1.75 in
1.75 in
50 pF for input/output
screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
Mexico
DC
SSP1
2,500V AC
2.1V DC
Screw Clamp
Screw
Single
Yes
Not Included
10 to 15 mA
10-15 mA
3 to 32V DC
3.5 to 32V DC
1,000 megaohm
IP20
IP20
Solid State Relay
25 A
0.001-25 A
LED, green input
EAC || CE || UL || CSA
50 pF
0.3 mA off-state
176 Degrees F
25 A
Not Recommended
1V DC
<2.1 V on-state
-40 Degrees F
3.5V DC
Through Panel
Panel
panel
Not Applicable
1 to 150 V DC
1 to 150V DC
1.25 in
2.32 in
III
1
1 phase
2
EAC || UL || CE || CSA
solid state relay up to 30 A
type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 13 A miniature circuit breaker (MCB) B
Surface
0.1 msec
Harmony(TM) SSP Series
DC switching || Mosfet output
CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed
Green LED Indicator
106 A 10 ms
MOSFET
0.22°C/W junction to case
1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output
DC Output
3.15 oz
3.5 to 32 V DC
2.5 kV output to case
