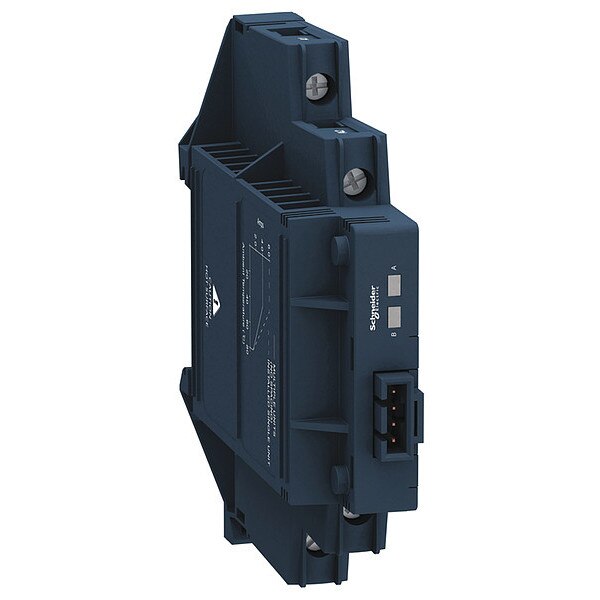

SolStateRelay, In4-32VDC, Out24-280VAC, SCR

SolStateRelay, In4-32VDC, Out24-280VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 14 to 16.87 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 6 A, Maximum Output Current without Heat Sink 6 A, Output Switching Mode Random/Instantaneous, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail

    graingerSKU: 55WM97, mscSKU: , zoro_no: G0745975, mongo_id: 65bbe98f22d7a989a99612c3

Web Price
$74.94 / each
Qty

Product Details

600 V
-30-80°C
-30-100°C
3.32 in
3.32 in
3.55 in
3.45 in
0.7 in
0.71 in
10 pF for input/output
Black
screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output
DPST-NO
0.5-0.5 (with maximum load)
Mexico
DC
84.4 mm
SSM
2,500V AC
1.3V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
V0 conforming to UL 94
Integral
90.3 mm
4/25 hp
Dual Channel
14 to 16.87 mA
14-16.87 mA
4 to 32V DC
4 to 32V DC
1,000 megaohm
IP20
IP20
Solid State Relay
6A
0.15-6 A
for input status LED (green)
CE
6.0 A
10 pF
0.16 hp 40°C 240 V AC
2560 A².s for 10 ms at 50 Hz || 2330 A².s for 8.33 ms at 60 Hz
0.1 mA off-state
176 Degrees F
6 A
6 A
1V DC
<1.3 V on-state
-22 Degrees F
4V DC
DIN Rail
DIN Rail
symmetrical DIN rail
2
24 to 280V AC
Random/Instantaneous
24 to 280 V AC
24 to 280V AC
3.32 in
3.56 in
III
1
1 phase
2
0.5
UL || CSA
solid state relay up to 10 A
DIN-Rail
0.5 msec
Harmony(TM) SSM Relays
SCR output || random voltage switching
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Green LED Indicator
715 A 16.6 ms || 750 A 20 ms
SCR
Form A
SCR
0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output
AC Output
3.2 oz
18 mm
4 to 32 V DC
