Home / SolStateRelay, In4-32VDC, Out48-530VAC, SCR

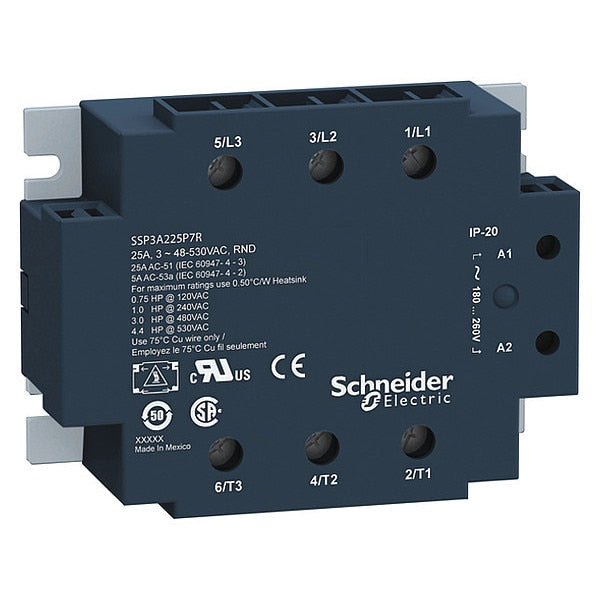

SolStateRelay, In4-32VDC, Out48-530VAC, SCR

SolStateRelay, In4-32VDC, Out48-530VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 24 to 35 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Random/Instantaneous, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Three, Finger Safe Yes

    graingerSKU: 55WM99, mscSKU: , zoro_no: G3465428, mongo_id: 65bbee2b526e052139af3726

Web Price
$241.24 / each
Qty

Product Details

1200 V
-40-80°C
-40-125°C
1.39 in
1.4 in
3.13 in
3.14 in
3.98 in
3.99 in
8 pF for input/output
screw terminals 1 x 0.2 to 1 x 2.5 mm², AWG 24 to AWG 14) input || screw terminals 1 x 1.5 to 1 x 10 mm², AWG 16 to AWG 8) output
without test button
0.5-0.5 (with maximum load)
Mexico
DC
35.4 mm
SSP
4,000V AC
1.35V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Three
Yes
V0 conforming to UL 94
Not Included
79.7 mm
1 hp
Not Found
24 to 35 mA
24-35 mA
4 to 32V DC
4 to 32V DC
1,000 megaohm
IP20
IP20
Solid State Relay
25 A
0.1-25 A
LED, green input
CE
8 pF
0.75 hp 40°C 120 V AC || 1 hp 40°C 240 V AC || 3 hp 40°C 480 V AC || 4.4 hp 40°C 530 V AC
380 A².s for 10 ms at 50 Hz || 370 A².s for 8.3 ms at 60 Hz
3 mA off-state
176 Degrees F
25 A
Not Recommended
1V DC
<1.35 V on-state
-40 Degrees F
4V DC
0.56 kW 40-40°C 120 V AC || 0.74 kW 40-40°C 240 V AC || 2.22 kW 40-40°C 480 V AC || 3.24 kW 40-40°C 530 V AC
Through Panel
Panel
panel
48 to 530V AC
Random/Instantaneous
48 to 530 V AC
48 to 530V AC
1.39 in
3.14 in
III
1
3 phase
2
0.5
CSA || UL
solid state relay up to 30 A
Surface
0.1 msec
Harmony(TM) SSP Series
random voltage switching
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Green LED Indicator
275 A 20 ms || 300 A 16.6 ms || 85 A 1 s
SCR
0.24°C/W
0.9 to 1.1 N.m for input || 1.7 to 2.2 N.m for output
AC Output
8.48 oz
101.3 mm
4 to 32 V DC
