Home / SolStateRelay, In4-32VDC, Out48-600VAC, SCR

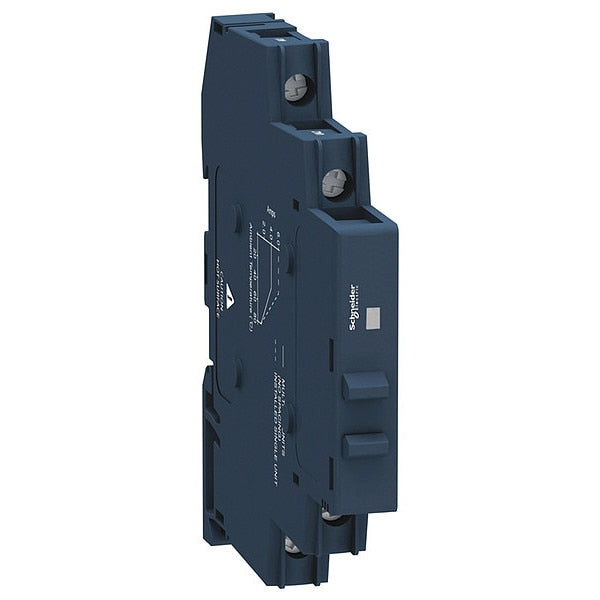

SolStateRelay, In4-32VDC, Out48-600VAC, SCR

SolStateRelay, In4-32VDC, Out48-600VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 8 to 11 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 6 A, Maximum Output Current without Heat Sink 6 A, Output Switching Mode Random/Instantaneous, Output Voltage Range 48 to 600V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail

    graingerSKU: 55WM96, mscSKU: , zoro_no: G3464055, mongo_id: 65bbe94522d7a989a994471d

Web Price
$51.81 / each
Qty

Product Details

1200 V
-30-80°C
-30-100°C
3.29 in
3.3 in
3.55 in
3.45 in
0.43 in
0.43 in
10 pF for input/output
Black
screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output
SPST-NO
0.5-0.5 (with maximum load)
Mexico
DC
83.7 mm
SSM
4,000V AC
1.3V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
V0 conforming to UL 94
Integral
90.3 mm
4/25 hp
Single Channel
8 to 11 mA
8-11 mA
4 to 32V DC
4 to 32V DC
1,000 megaohm
IP20
IP20
Solid State Relay
6A
0.15-6 A
for input status LED (green)
CE
6.0 A
10 pF
0.16 hp 40°C 240 V AC
410 A².s for 10 ms at 50 Hz || 375 A².s for 8.33 ms at 60 Hz
0.1 mA off-state
176 Degrees F
6 A
6 A
1V DC
<1.3 V on-state
-22 Degrees F
4V DC
DIN Rail
DIN Rail
symmetrical DIN rail
1
48 to 600V AC
Random/Instantaneous
48 to 600 V AC
48 to 600V AC
3.29 in
3.56 in
III
1
1 phase
2
0.5
CSA || UL
solid state relay up to 10 A
DIN-Rail
0.5 msec
Harmony(TM) SSM Relays
random voltage switching || SCR output
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Green LED Indicator
285 A 16.6 ms || 300 A 20 ms
SCR
Form A
SCR
0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output
AC Output
1.76 oz
11 mm
4 to 32 V DC
