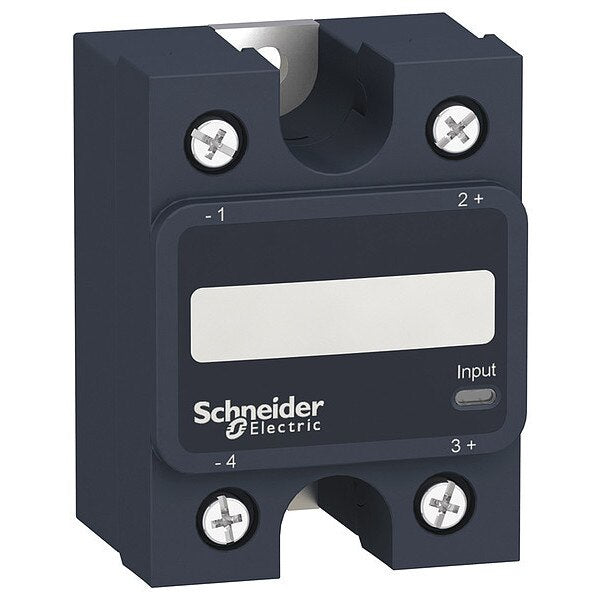

Home / SolStateRelay, In4-32VDC, Out48-660VAC, SCR
SolStateRelay, In4-32VDC, Out48-660VAC, SCR

SolStateRelay, In4-32VDC, Out48-660VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 7 to 12 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 660V AC, Standards CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single

    graingerSKU: 55WK99, mscSKU: , zoro_no: G0746088, mongo_id: 65bbe5853aaddbd5a9fcb326

Web Price
$161.24 / each
Qty

Product Details

1200 V
-40-80°C
-40-125°C
1.25 in
1.35 in
2.32 in
2.32 in
1.75 in
1.75 in
8 pF for input/output
screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
0.5-0.5 (with maximum load)
Mexico
DC
SSP1
4,000V AC
1.15V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
Not Included
5 hp
Thermal Pad
Yes
7 to 12 mA
7-12 mA
4 to 32V DC
4 to 32V DC
1,000 megaohm
IP20
IP20
Solid State Relay
125 A
0.15-125 A
LED, green input
CSA || UL || CE || EAC
8 pF
2 hp 120 V AC || 5 hp 240 V AC || 10 hp 480 V AC
12709 A².s for 8.33 ms at 60 Hz || 13950 A².s for 10 ms at 50 Hz
1 mA off-state
176 Degrees F
25 A
Not Recommended
1V DC
<1.15 V on-state
-40 Degrees F
4V DC
Through Panel
Panel
panel
48 to 660V AC
Zero Crossing
48 to 660 V AC
48 to 660V AC
1.25 in
2.32 in
III
1
1 phase
2
0.5
CSA || CE || UL || EAC
solid state relay up to 125 A
type 1 - 80 A miniature circuit breaker (MCB) B || type 2 - 63 A miniature circuit breaker (MCB) B
thermal pad
Surface
0.5 msec
Harmony(TM) SSP Series
zero voltage switching || SCR output
CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed
Green LED Indicator
1750 A 16.6 ms
SCR
SCR
0.48°C-in²/W at 25 psi
0.22°C/W junction to case
1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output
AC Output
3.15 oz
4 to 32 V DC
6 kV output to case || 6 kV input to output
