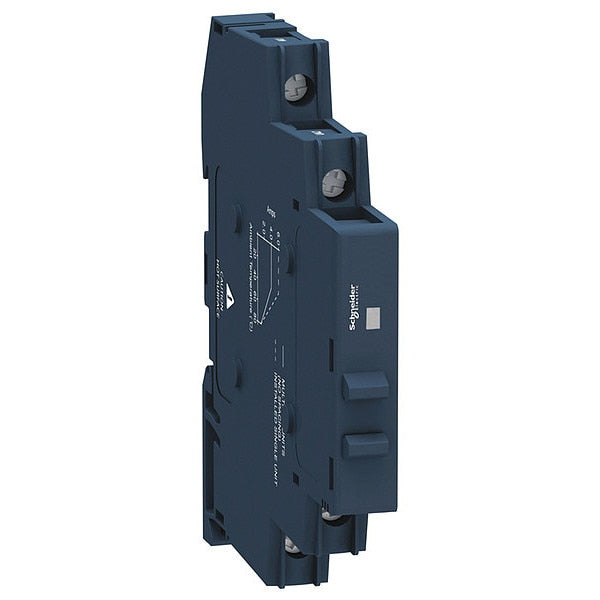

Home / SolStateRely, In18-36VAC, Out24-280VAC, SCR
SolStateRely, In18-36VAC, Out24-280VAC, SCR

SolStateRely, In18-36VAC, Out24-280VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 3.5 to 8.5 mA, Input Voltage 18 to 36V AC, Maximum Output Current with Heat Sink 6 A, Maximum Output Current without Heat Sink 6 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail

    graingerSKU: 55WM68, mscSKU: , zoro_no: G0745957, mongo_id: 65bbe7ba9a749db82275126a

Web Price
$48.36 / each
Qty

Product Details

600 V
-30-80°C
-30-100°C
3.29 in
3.3 in
3.55 in
3.45 in
0.43 in
0.43 in
10 pF for input/output
Black
screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output
SPST-NO
0.5-0.5 (with maximum load)
Mexico
AC
83.7 mm
SSM
4,000V AC
1.3V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
V0 conforming to UL 94
Integral
90.3 mm
4/25 hp
Single Channel
3.5 to 8.5 mA
3.5-8.5 mA
18 to 36V AC
18 to 36V AC
1,000 megaohm
IP20
IP20
Solid State Relay
6A
0.15-6 A
for input status LED (green)
CE
10 pF
0.16 hp 40°C 240 V AC
410 A².s for 10 ms at 50 Hz || 375 A².s for 8.33 ms at 60 Hz
0.1 mA off-state
176 Degrees F
6 A
6 A
4V AC
<1.3 V on-state
-22 Degrees F
18V AC
DIN Rail
DIN Rail
symmetrical DIN rail
1
24 to 280V AC
Zero Crossing
24 to 280 V AC
24 to 280V AC
3.29 in
3.56 in
III
1
1 phase
2
0.5
CSA || UL
solid state relay up to 10 A
DIN-Rail
Zero Crossing
30 msec
Harmony(TM) SSM Relays
zero voltage switching || SCR output
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Green LED Indicator
285 A 16.6 ms || 300 A 20 ms
SCR
Form A
SCR
0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output
AC Output
1.76 oz
11 mm
18 to 36 V AC
