Home / SolStateRely, In180-280VAC, Out48-530VAC

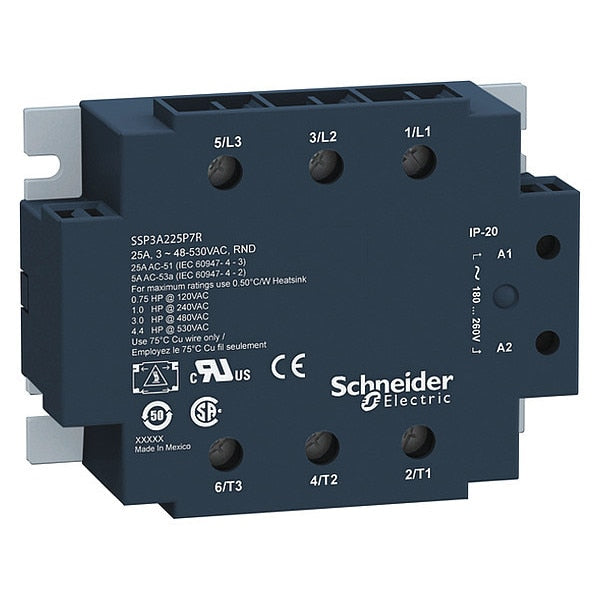

SolStateRely, In180-280VAC, Out48-530VAC

SolStateRely, In180-280VAC, Out48-530VAC

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 7 to 20 mA, Input Voltage 180 to 280V AC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Three, Finger Safe Yes, Mounting Style Panel

    graingerSKU: 55WN08, mscSKU: , zoro_no: G3465918, mongo_id: 65bbe7da9a749db82275f7e0

Web Price
$261.24 / each
Qty

Product Details

1200 V
-40-80°C
-40-125°C
1.39 in
1.4 in
3.13 in
3.14 in
3.98 in
3.99 in
8 pF for input/output
screw terminals 1 x 0.2 to 1 x 2.5 mm², AWG 24 to AWG 14) input || screw terminals 1 x 1.5 to 1 x 10 mm², AWG 16 to AWG 8) output
without test button
0.5-0.5 (with maximum load)
Mexico
AC
35.4 mm
SSP
4,000V AC
1.35V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Three
Yes
V0 conforming to UL 94
Not Included
79.7 mm
3 hp
Not Found
7 to 20 mA
7-20 mA
180 to 280V AC
180 to 280V AC
1,000 megaohm
IP20
IP20
Solid State Relay
50 A
0.1-50 A
LED, green input
CE
8 pF
1.5 hp 40°C 120 V AC || 3 hp 40°C 240 V AC || 7.5 hp 40°C 480 V AC || 8.8 hp 40°C 530 V AC
2520 A².s for 10 ms at 50 Hz || 2320 A².s for 8.3 ms at 60 Hz
3 mA off-state
176 Degrees F
50 A
Not Recommended
10V AC
<1.35 V on-state
-40 Degrees F
180V AC
1.11 kW 40-40°C 120 V AC || 2.22 kW 40-40°C 240 V AC || 5.55 kW 40-40°C 480 V AC || 6.47 kW 40-40°C 530 V AC
Through Panel
Panel
panel
48 to 530V AC
Zero Crossing
48 to 530 V AC
48 to 530V AC
1.39 in
3.14 in
III
1
3 phase
2
0.5
UL || CSA
solid state relay up to 50 A
Surface
Zero Crossing
30 msec
Harmony(TM) SSP Series
zero voltage switching
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Green LED Indicator
715 A 20 ms || 750 A 16.6 ms || 150 A 1 s
SCR
0.12°C/W
0.9 to 1.1 N.m for input || 1.7 to 2.2 N.m for output
AC Output
8.48 oz
101.3 mm
180 to 280 V AC
