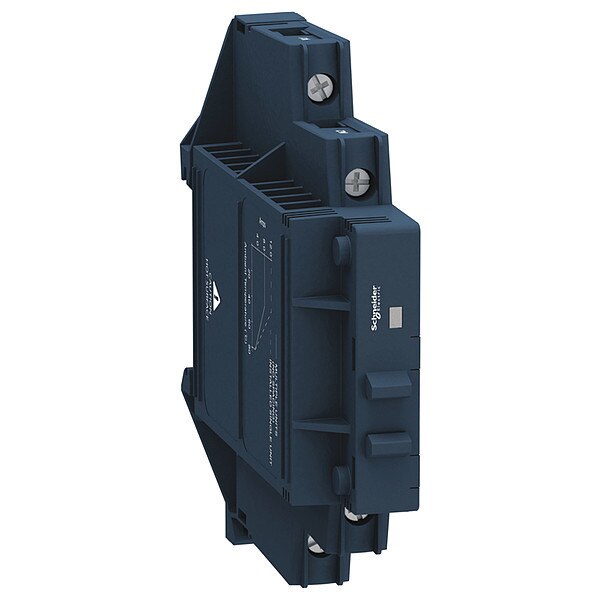

SolStateRely, In200-265VAC, Out24-280VAC

SolStateRely, In200-265VAC, Out24-280VAC

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 2.5 to 3.5 mA, Input Voltage 200 to 265V AC, Maximum Output Current with Heat Sink 12 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail

    graingerSKU: 55WL26, mscSKU: , zoro_no: G0745598, mongo_id: 65bbe8069a749db82276dc4a

Web Price
$59.99 / each
Qty

Product Details

600 V
-30-80°C
-30-100°C
3.29 in
3.3 in
3.55 in
3.45 in
0.7 in
0.71 in
10 pF for input/output
Black
screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output
SPST-NO
0.5-0.5 (with maximum load)
Mexico
AC
83.7 mm
SSM
4,000V AC
1.3V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
V0 conforming to UL 94
Integral
90.3 mm
1/3 hp
Single Channel
2.5 to 3.5 mA
2.5-3.5 mA
200 to 265V AC
200 to 265V AC
1,000 megaohm
IP20
IP20
Solid State Relay
12A
0.15-12 A
for input status LED (green)
CE
12.0 A
10 pF
0.33 hp 40°C 240 V AC
2560 A².s for 10 ms at 50 Hz || 2330 A².s for 8.33 ms at 60 Hz
0.1 mA off-state
176 Degrees F
12 A
12 A
90V AC
<1.3 V on-state
-22 Degrees F
200V AC
DIN Rail
DIN Rail
symmetrical DIN rail
1
24 to 280V AC
Zero Crossing
24 to 280 V AC
24 to 280V AC
3.29 in
3.56 in
III
1
1 phase
2
0.5
CSA || UL
solid state relay up to 20 A
DIN-Rail
Zero Crossing
30 msec
Harmony(TM) SSM Relays
SCR output || zero voltage switching
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Green LED Indicator
715 A 16.6 ms || 750 A 20 ms
SCR
Form A
SCR
0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output
AC Output
3.2 oz
18 mm
200 to 265 V AC
