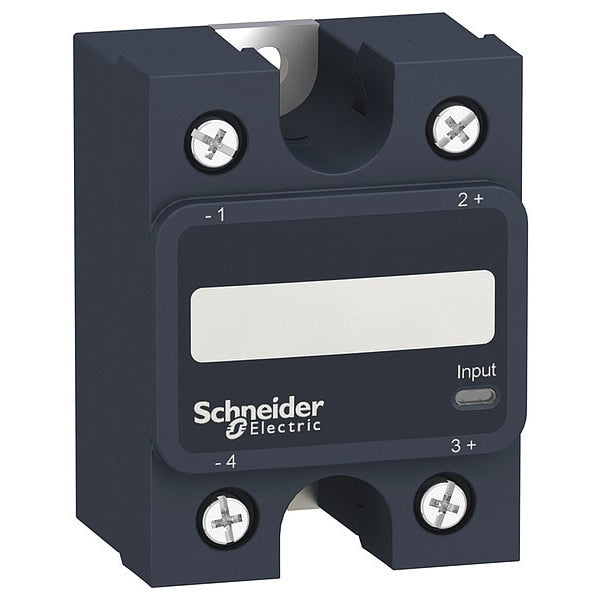

SolStatRely, In90-280VAC, Out48-660VAC, SCR

SolStatRely, In90-280VAC, Out48-660VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 10 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 125 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 660V AC, Standards CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single

    graingerSKU: 55WN11, mscSKU: , zoro_no: G0745607, mongo_id: 65bbe80722d7a989a98d1b85

Web Price
$147.49 / each
Qty
Minimum order: 30

Product Details

1200 V
-40-80°C
-40-125°C
1.25 in
1.35 in
2.32 in
2.32 in
1.75 in
1.75 in
8 pF for input/output
screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
0.5-0.5 (with maximum load)
Mexico
AC
SSP1
4,000V AC
1.15V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
Not Included
5 hp
Thermal Pad
Yes
5 to 10 mA
5-10 mA
90 to 280V AC
90 to 280V AC
1,000 megaohm
IP20
IP20
Solid State Relay
125 A
0.15-125 A
LED, green input
UL || CE || EAC || CSA
8 pF
2 hp 120 V AC || 5 hp 240 V AC || 10 hp 480 V AC
12709 A².s for 8.33 ms at 60 Hz || 13950 A².s for 10 ms at 50 Hz
1 mA off-state
176 Degrees F
125 A
Not Recommended
10V AC
<1.15 V on-state
-40 Degrees F
90V AC
Through Panel
Through Panel
48 to 660V AC
Zero Crossing
48 to 660 V AC
48 to 660V AC
1.25 in
2.32 in
III
1
1 phase
2
0.5
CSA || EAC || UL || CE
solid state relay up to 125 A
type 1 - 80 A miniature circuit breaker (MCB) B || type 2 - 63 A miniature circuit breaker (MCB) B
thermal pad
Surface
Zero Crossing
30 msec
Harmony(TM) SSP Series
SCR output || zero voltage switching
CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed
Green LED Indicator
1750 A 16.6 ms
SCR
SCR
0.48°C-in²/W at 25 psi
0.22°C/W junction to case
1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output
AC Output
3.15 oz
90 to 280 V AC
6 kV output to case || 6 kV input to output
