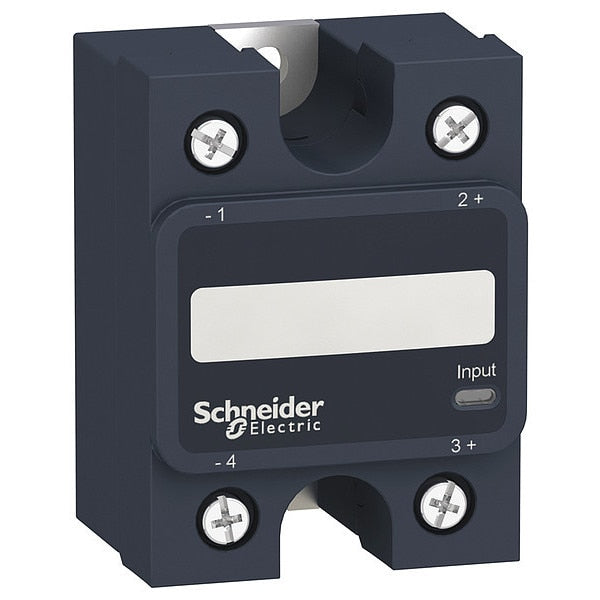

SolStatRely, In90-280VAC, Out48-660VAC, SCR

SolStatRely, In90-280VAC, Out48-660VAC, SCR

  • Schneider Electric
  • Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 10 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 660V AC, Standards CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single

    graingerSKU: 55WT12, mscSKU: , zoro_no: G3466557, mongo_id: 65bbe83422d7a989a98e0205

Web Price
$57.69 / each
Qty

Product Details

1200 V
-40-80°C
-40-125°C
1.25 in
1.35 in
2.32 in
2.32 in
1.75 in
1.75 in
8 pF for input/output
screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
0.5-0.5 (with maximum load)
Mexico
AC
SSP1
4,000V AC
1.15V DC
500 V/µs off-state at maximum voltage
Screw Clamp
Screw
Single
Yes
Not Included
2 hp
5 to 10 mA
5-10 mA
90 to 280V AC
90 to 280V AC
1,000 megaohm
IP20
IP20
Solid State Relay
50 A
0.15-50 A
LED, green input
EAC || CE || UL || CSA
8 pF
0.75 hp 120 V AC || 2 hp 240 V AC || 5 hp 480 V AC
1770 A².s for 10 ms at 50 Hz || 1629 A².s for 8.33 ms at 60 Hz
1 mA off-state
176 Degrees F
50 A
Not Recommended
10V AC
<1.15 V on-state
-40 Degrees F
90V AC
Through Panel
Panel
panel
48 to 660V AC
Zero Crossing
48 to 660 V AC
48 to 660V AC
1.25 in
2.32 in
III
1
1 phase
2
0.5
EAC || CE || CSA || UL
solid state relay up to 50 A
type 1 - 40 A miniature circuit breaker (MCB) B || type 2 - 32 A miniature circuit breaker (MCB) B
Surface
Zero Crossing
30 msec
Harmony(TM) SSP Series
SCR output || zero voltage switching
CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed
Green LED Indicator
625 A 16.6 ms
SCR
SCR
0.45°C/W junction to case
1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output
AC Output
3.15 oz
90 to 280 V AC
6 kV output to case || 6 kV input to output
